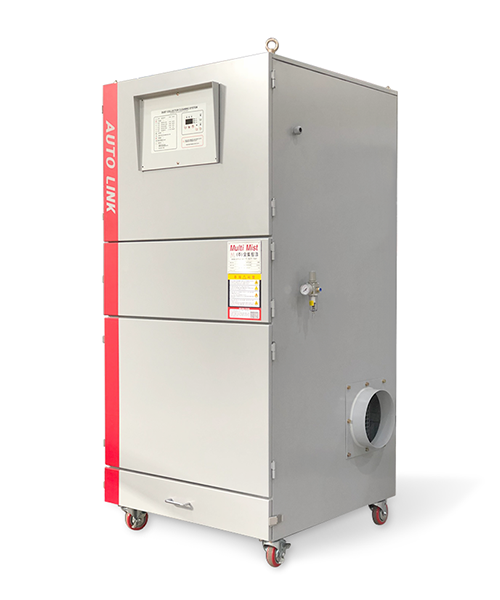

Laser Fume Extractors ALSP Series > Product

Page information

Author 최고관리자
Comments 0Case Views 3 Date 24-10-07 17:44

Keyword

Fume Removal, Automatic Filter Cleaning, Air Pulse Type, Special Coated Filters, Environmental Approvals Available

Where to use

For factories with laser and plasma processing, welding, acrylic and metal cutting, cast iron, cast steel work, and long continuous operation.

Installation examples

Product selection

Specs

Product specifications

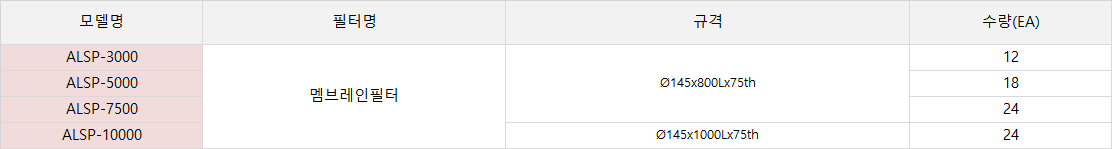

Filter specifications

Features

Filter Features

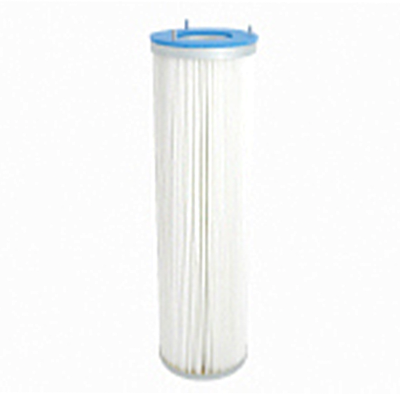

- Membrane filter (Ø145x500L/800L/1000Lx75th)
  The cartridge filter is specially coated with fluoropolymer to effectively remove even highly sticky fumes, so the filter cycle is long and the suction power lasts for a long time.
- Dedicated dust collector to effectively remove fumes from plasma and laser cutting machines
- Use specially coated filters (Teflon filters) to capture fine particles
- The filter's self-cleaning feature allows for longer filter change intervals and longer lasting suction power (auto-tally)

Product Features

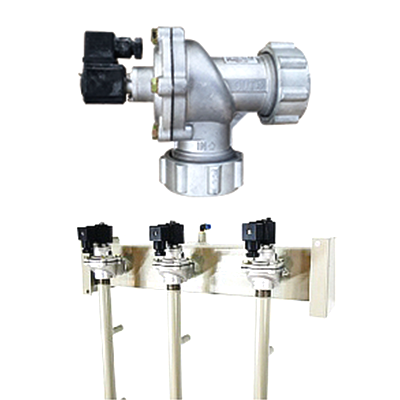

- Using compressed air from the tank, the Air Pulse Jet method automatically cleans the filter at regular intervals. The local switch allows easy operation of the power, even from an elevated or distant position.
- For use in dusty or continuously running processes
- Effective for capturing fine dust and long-lasting suction power
- Auto-cleaning of the filter reduces the filter's change interval by steaming (auto-dewatering)

Options

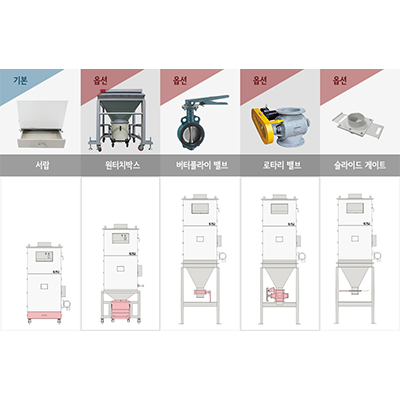

- Lower dust box specifications of the dust collector can be changed. Dust from filter cleaning is collected in a sliding drawer-type box for easy discharge. Drawer (standard): Affordable and portable without a separate container, lowering dust collector height. One-touch box (optional): Simplifies dust handling with an inner bag. Butterfly valve (optional): Allows dust discharge with minimal leakage during operation. Rotary valve (optional): Collects dust while operating. Slide gate (optional): Manually opens to recover dust in the hopper. Flexible arm: Easily adjustable to desired positions. Power meter: Measures electricity usage. Environmental permit materials can be applied (not limited to permit purposes). Measurement device (stack): Measures discharge volume. Safety railing & ladder: Installed for fall prevention. Control panel: Monitors dust collector operation. Environmental permit materials can be applied (not limited to permit purposes).
