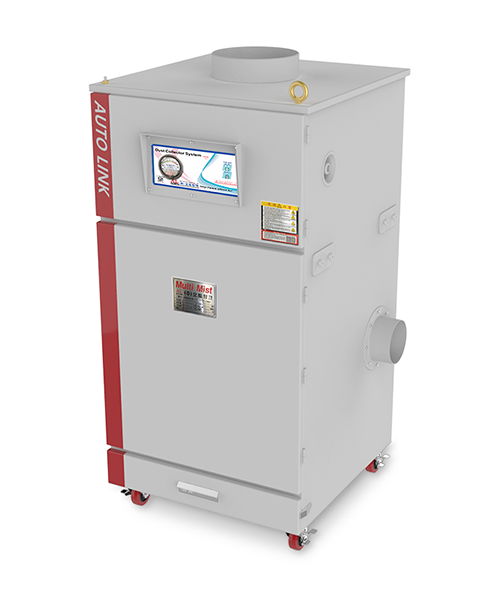

ALM Series ALM Series of fine dust collectors

Description

Keyword

Removes fine dust, 3-stage filter structure, extended filter replacement life, high capture efficiency

Where to use

Places where relatively large particles of dust are generated, such as planing, molding, grinding, drilling, acrylic processing, cutting, shredding, stone milling, cutting and cutting, grinding, mixing, packaging, etc.

Installation examples

Product selection

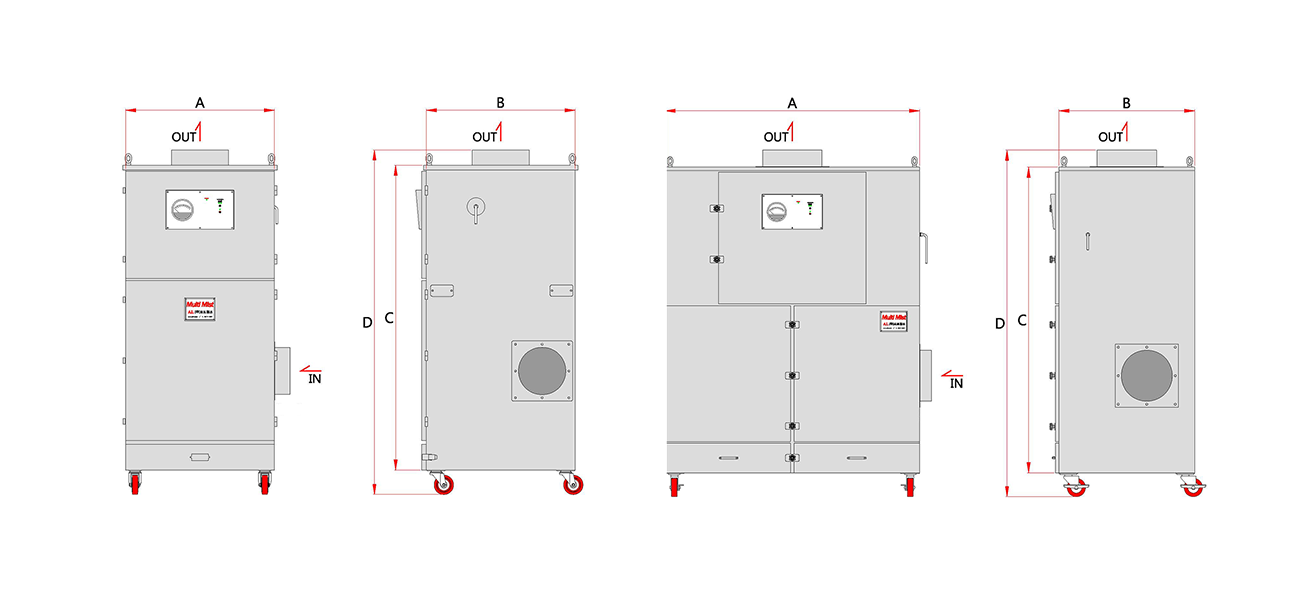

Specs

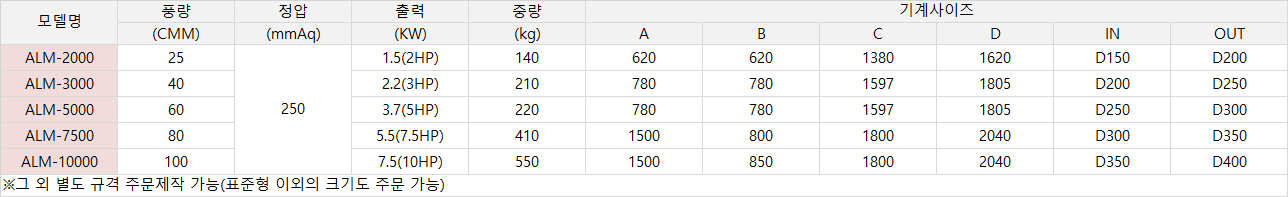

Product specifications

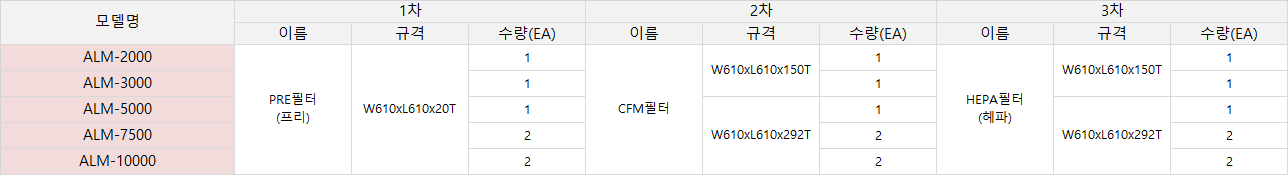

Filter specifications

Features

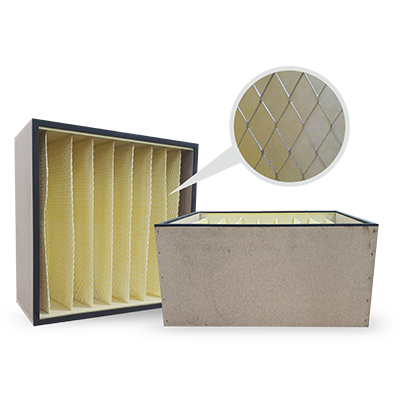

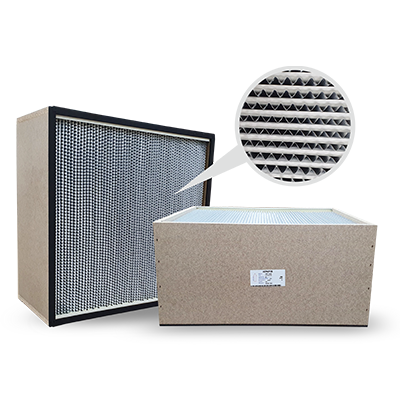

Filter Features

- 1st PRE filter (W610xL610x20T) / 2nd CFM filter (W610xL610x292T) / 3rd HEPA filter (W610xL610x150T/292T)
- Pretreatment filter captures relatively large particles of 3 to 30 μm / Captures particulate matter larger than 1 μm and oil and water by adhesion / Captures dust of 0.3 μm particles by 99.7% or more

Product Features

Options

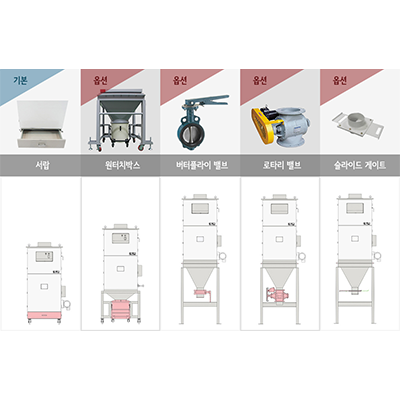

- Dust collector lower dust box specifications can be changed. After filter cleaning, dust is collected in a sliding drawer for easy discharge. Drawer (standard): Affordable, portable, and lowers dust collector height without a separate container. One-touch box (optional): Simplifies dust handling with an inner bag. Butterfly valve (optional): Allows dust discharge after operation with minimal leakage. Rotary valve (optional): Collects dust during operation. Slide gate (optional): Manually opens to recover dust in the hopper. Flexible arm: Easily adjustable for desired positions. Various flexible hoses are applicable.
