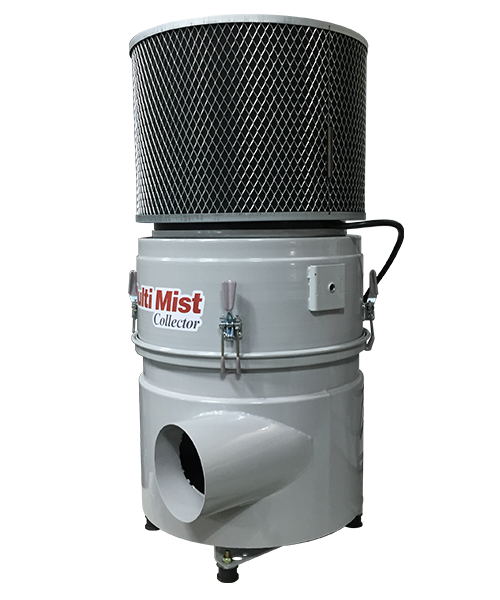

Compact Cyclone Dust Collector > Product

Page information

Author 최고관리자
Comments 0Case Views 2 Date 24-08-09 10:01

Keyword

Angle adjustment, leakage protection, motor protection, vertical structure, capture efficiency, chip separation

Where to use

Grinding machines and other locations that generate a lot of chips, dust, and other sludge or mist.

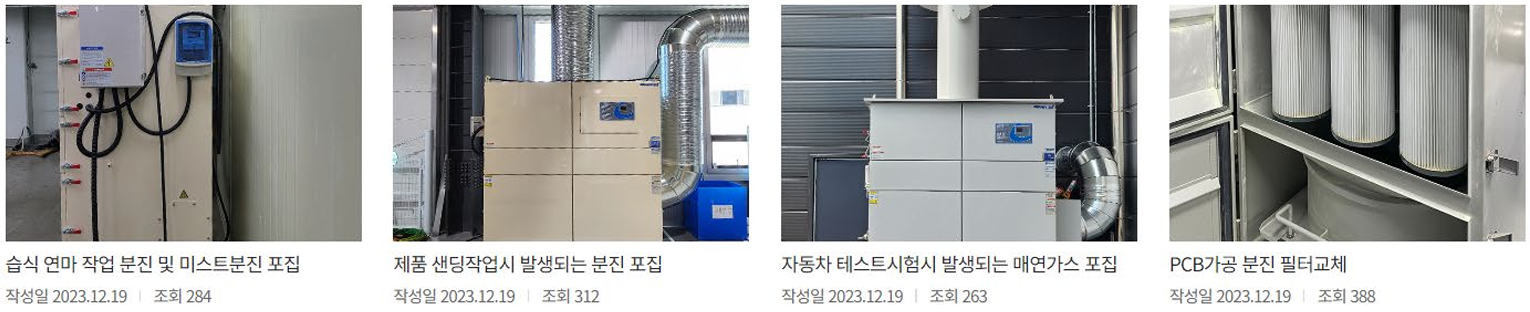

Installation examples

Product selection

Specs

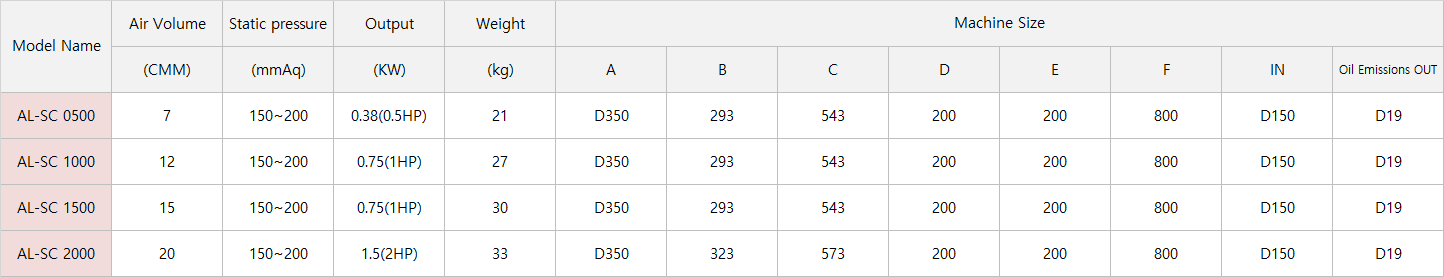

Product specifications

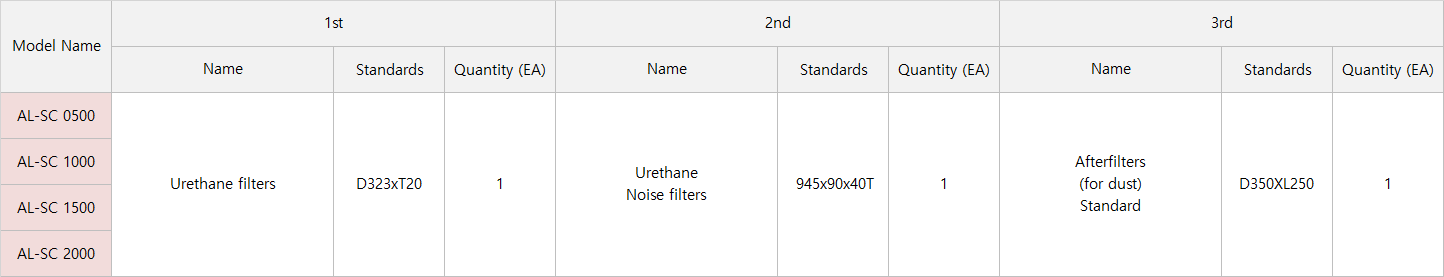

Filter specifications

Features

Filter Features

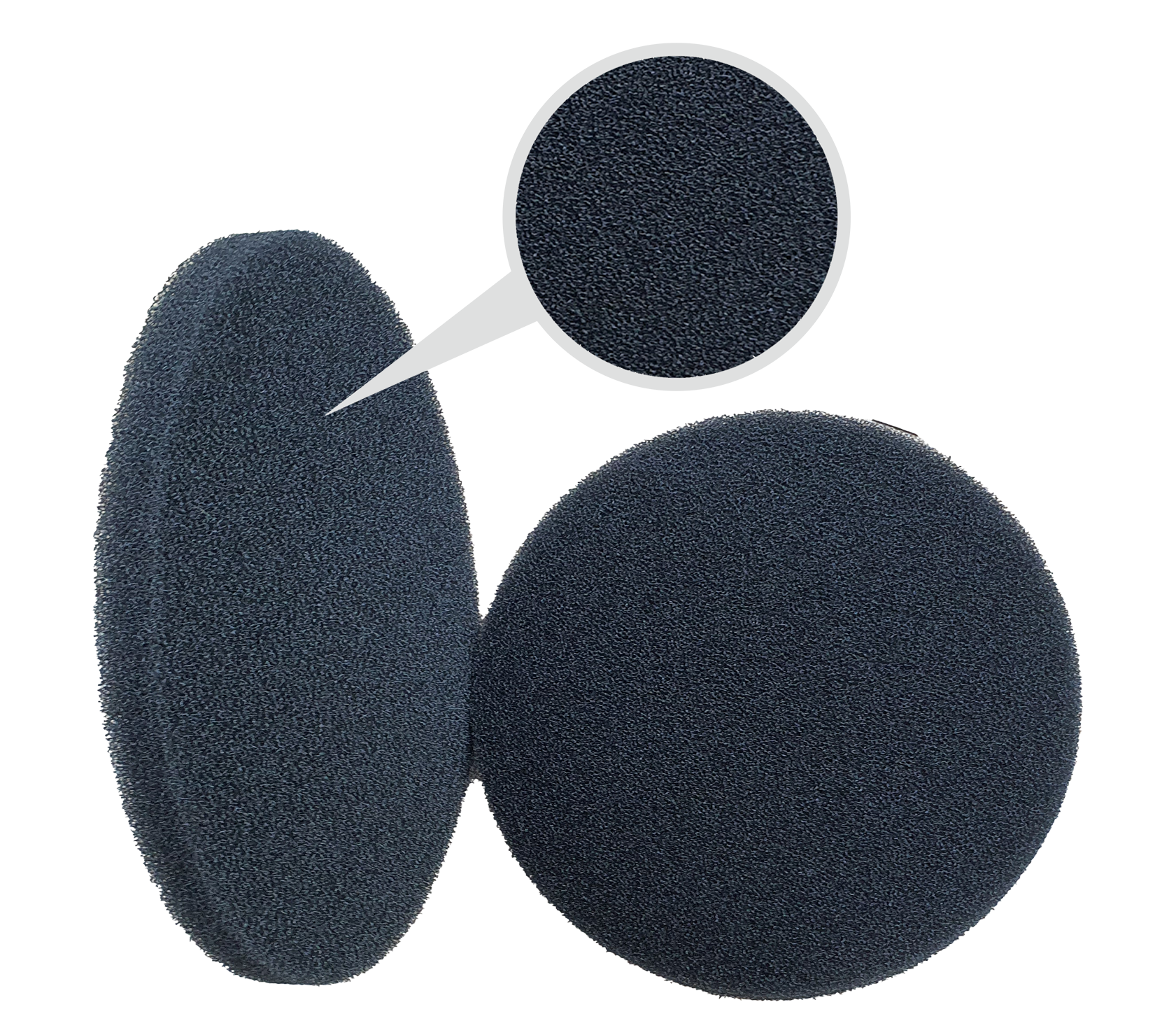

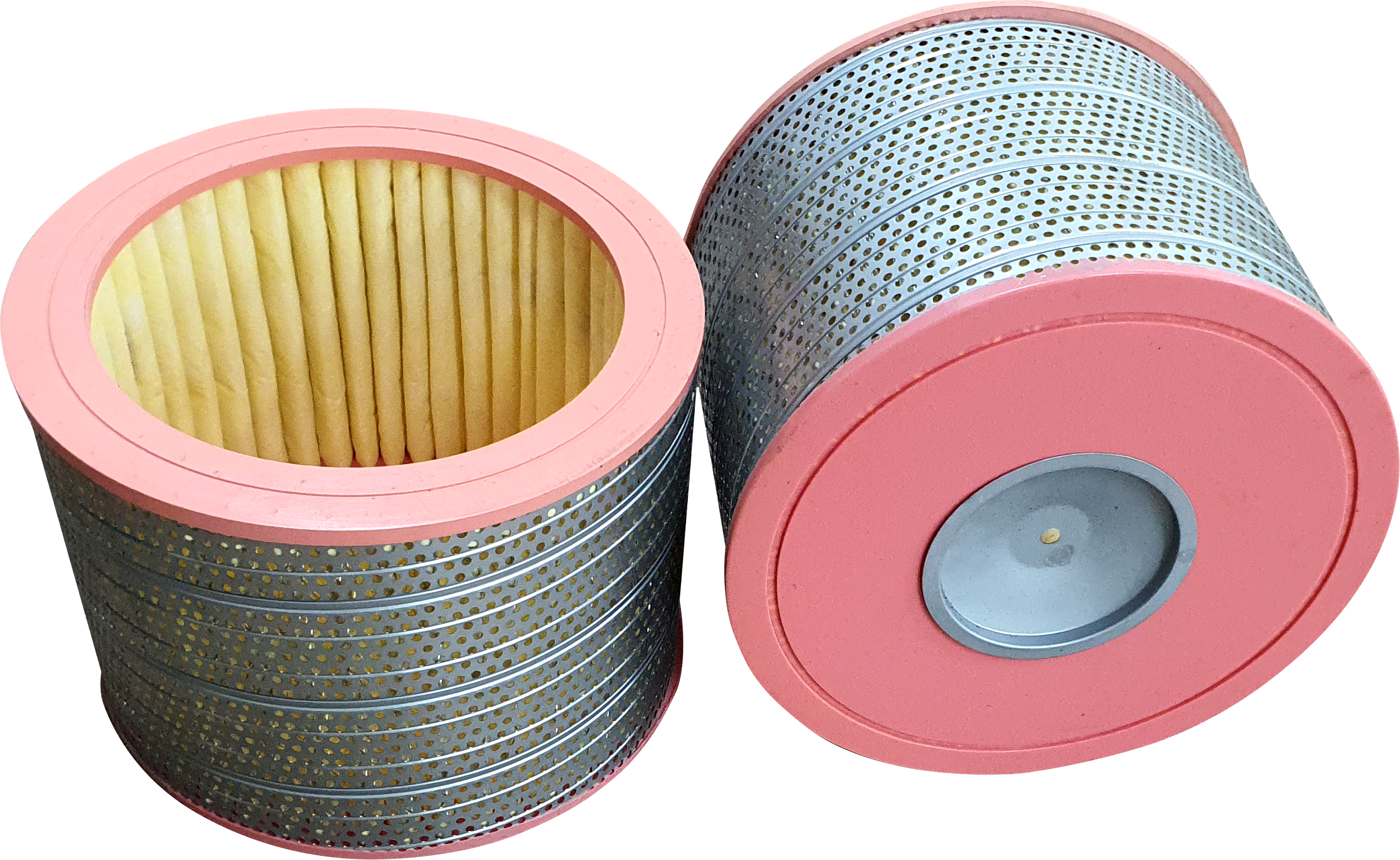

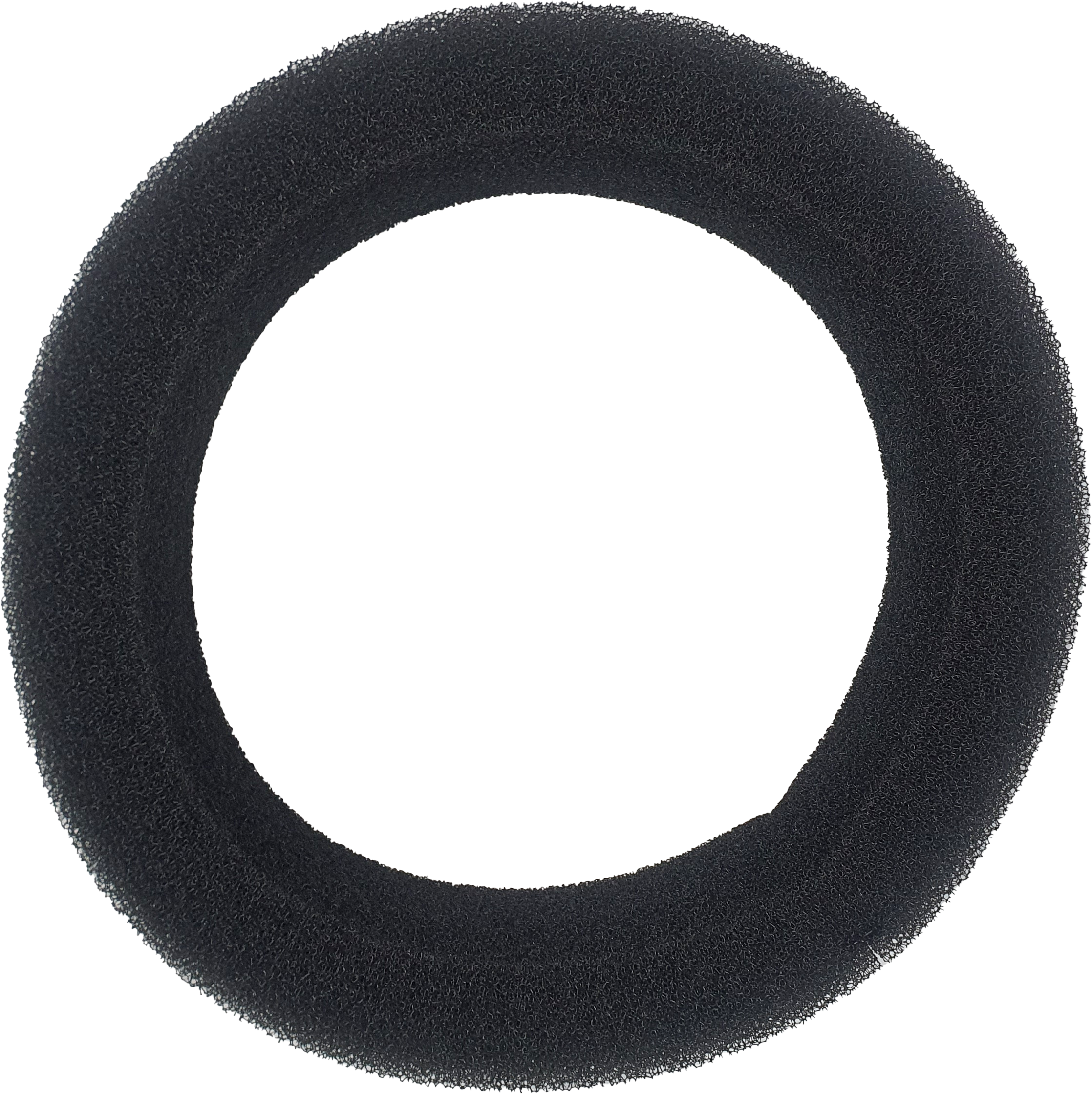

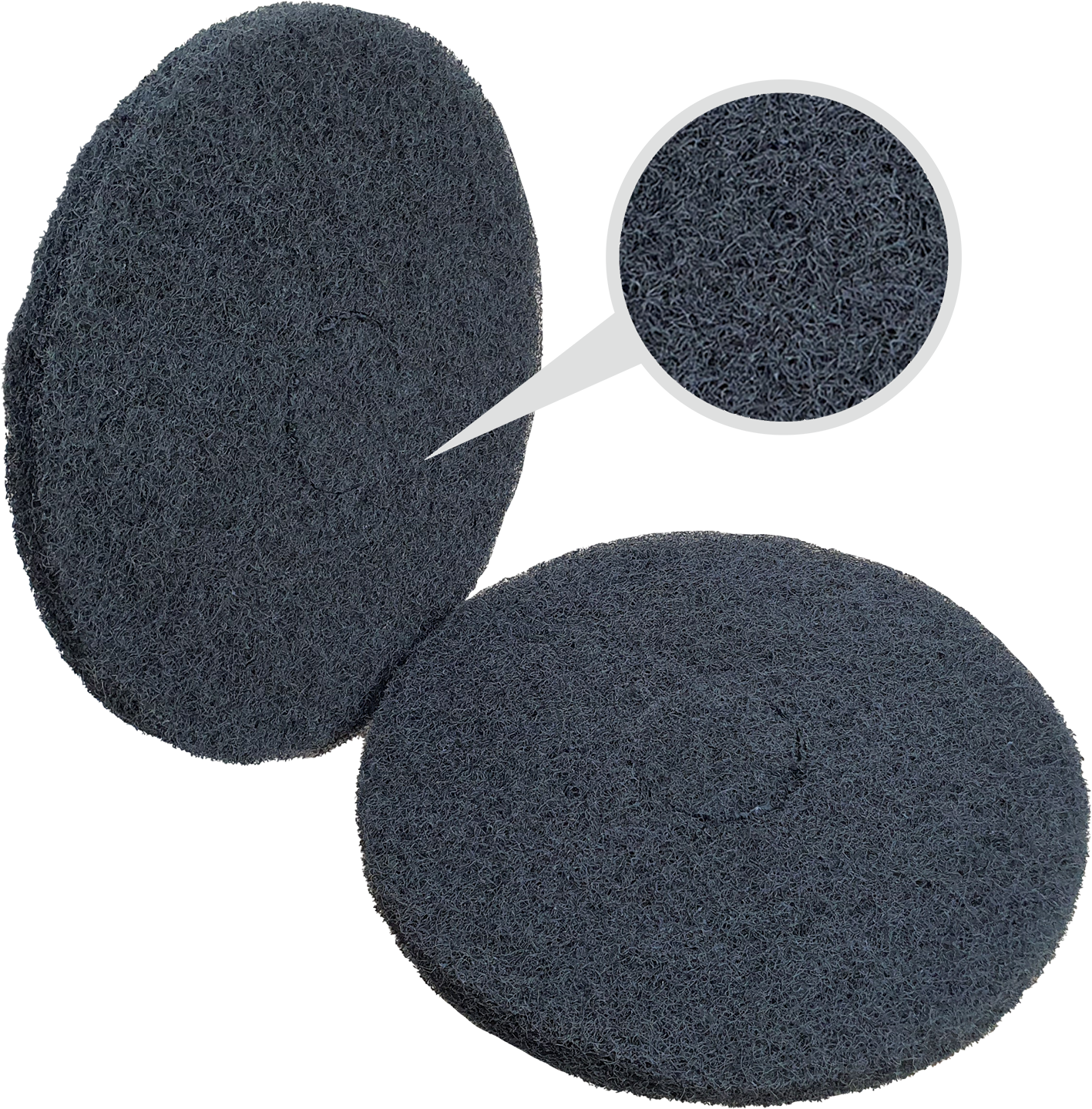

- Primary urethane filter (D323xT20) / Secondary urethane sound filter (945x90x40T) / Thirdary afterfilter (D350xL250)
- Condenses the mist contained in the fluid and discharges it to the bottom, and the filter can be cleaned or replaced
- Unlike ceramic filters in the Multi Series, no rubber gasket is used
- Can be cleaned or replaced

Product Features

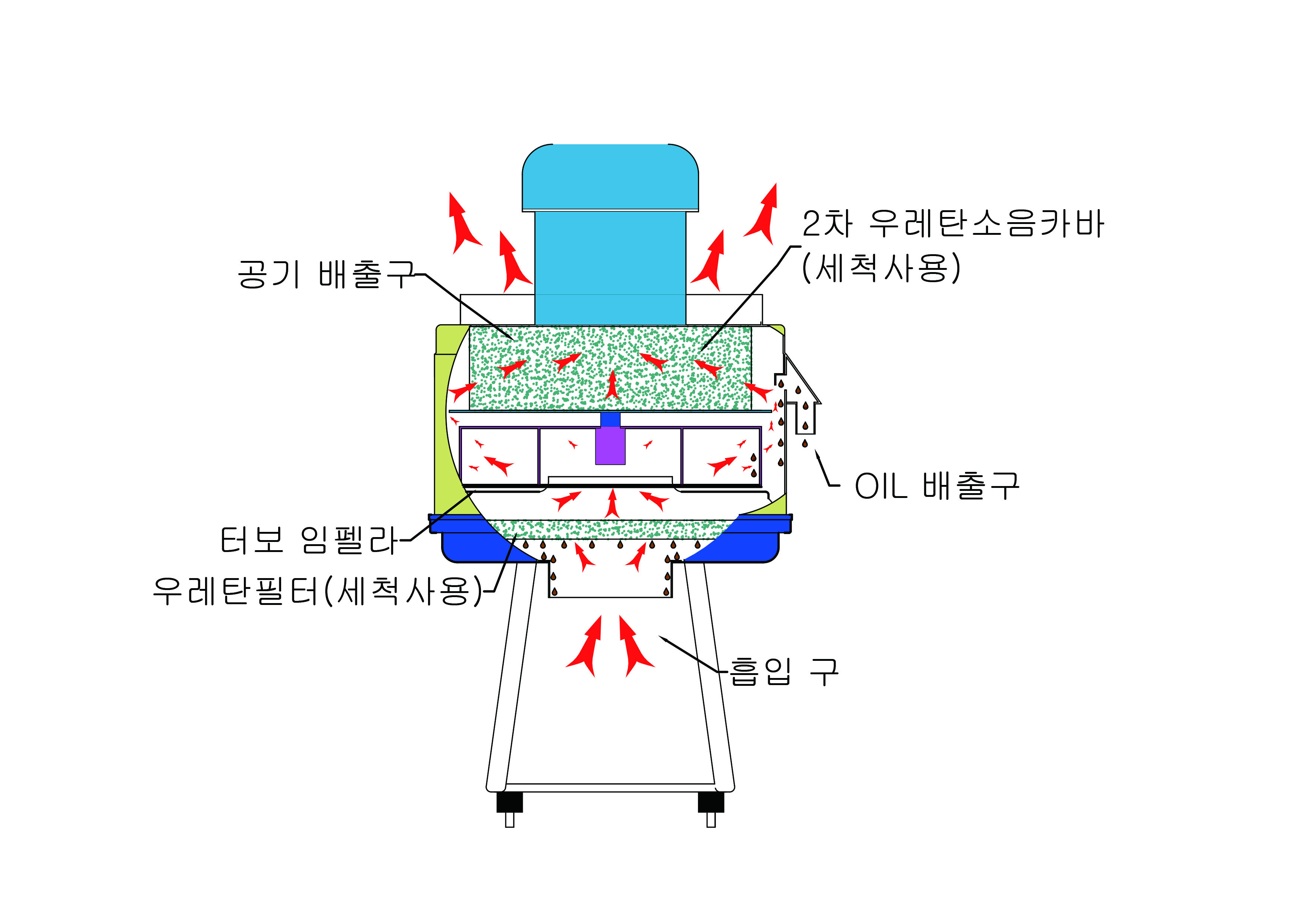

- High capture efficiency as the mist (large particles and sludge) is firstly blocked by a cyclone and secondly captured again by a centrifuge
- Multiple mounting methods allow for installation in tight spaces or on tall equipment and/or smart construction makes it a lightweight, efficient, clean and aesthetically pleasing dust collector
- Vertical structure allows coolant to be returned to the bottom, so the amount of oil discharge through the oil outlet is minimal, resulting in high capture efficiency and long filter life

Options

- Primary urethane filter can be changed to ceramic filter / / Dust collector mounting: mounting from 1400 to 2200 lengths / Separate mobile mounting available
