ALO

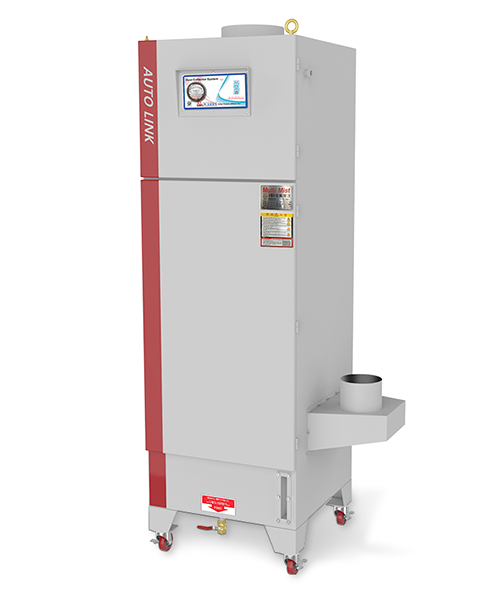

Medium to Large Oil Mist Collectors
Description
Description
Keyword
Staged filter, oil mist capture, health protection, toggle clamp, drain valve
Where to use
Locations with significant mist during machine part processing or needing central dust collection systems.
Sites using industrial machine tools like MCT, CNC lathes, grinders, and high-speed machining centers.
Sites using industrial machine tools like MCT, CNC lathes, grinders, and high-speed machining centers.
구매하기Specs

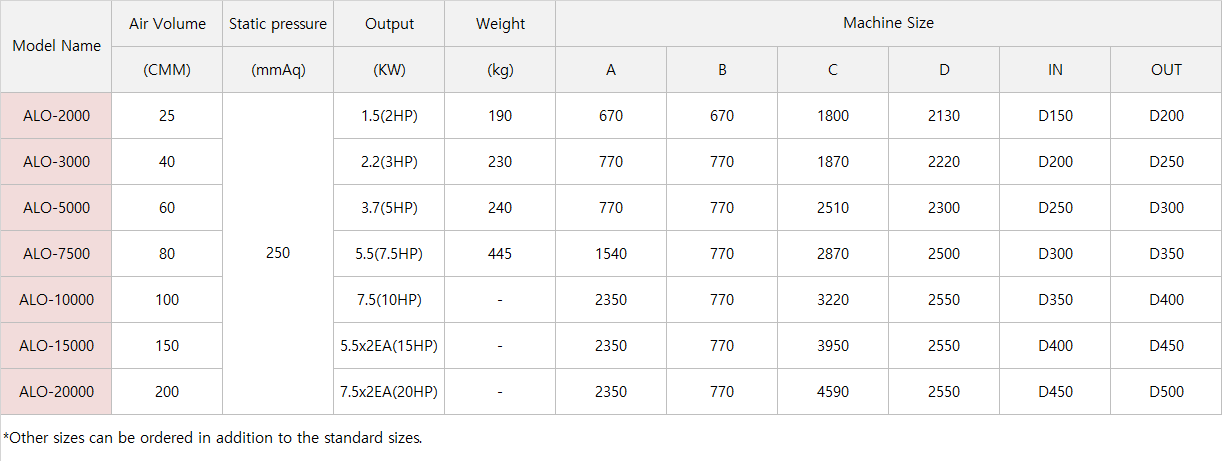

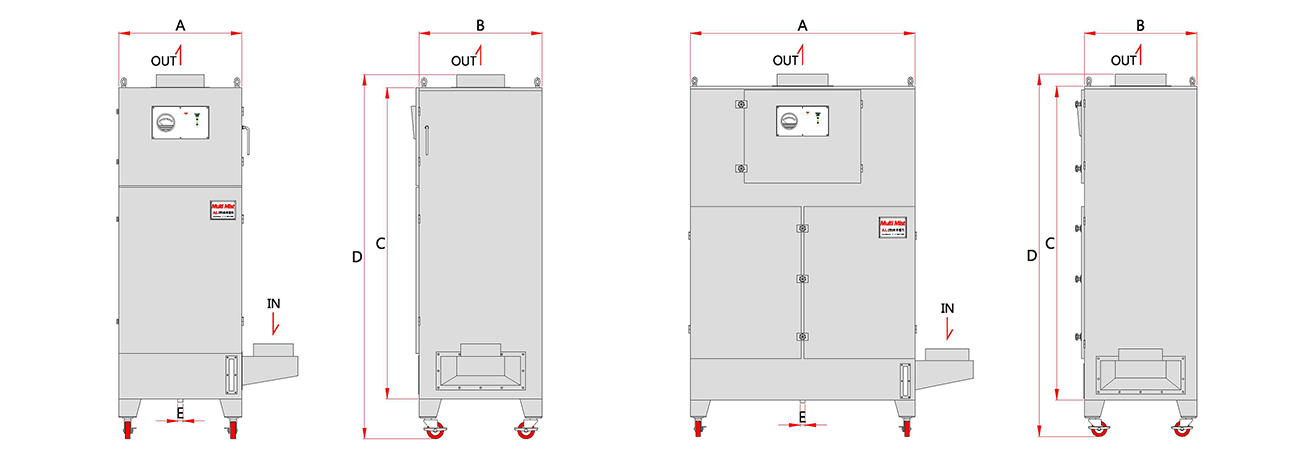

Product specifications

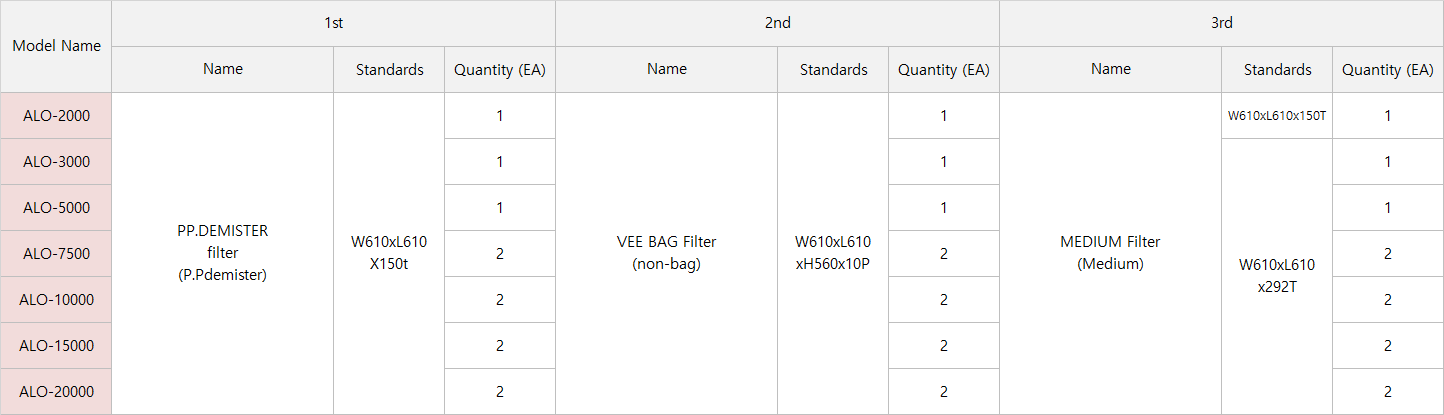

Filter specifications
Features
Filter Features
-

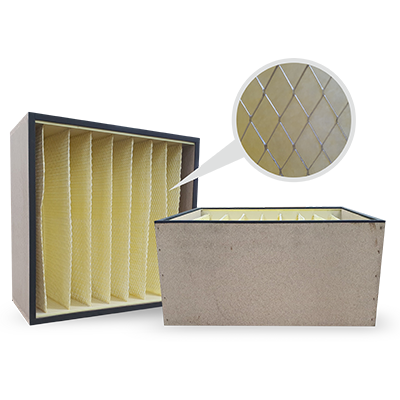

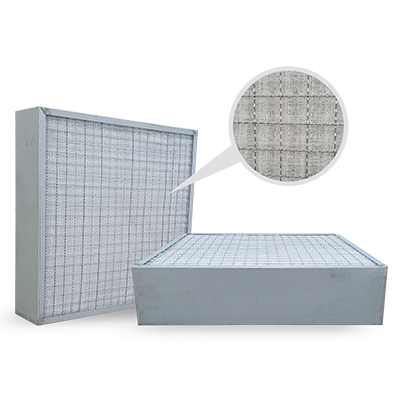

- 1st P.P DEMISTER filter (W610xL610x150T)
- Pretreatment filter captures relatively large particles of 3 to 30 microns / Captures particulate matter larger than 1 micron and oil and water by adhesion / Captures dust with particles of 0.3 microns over 99.7

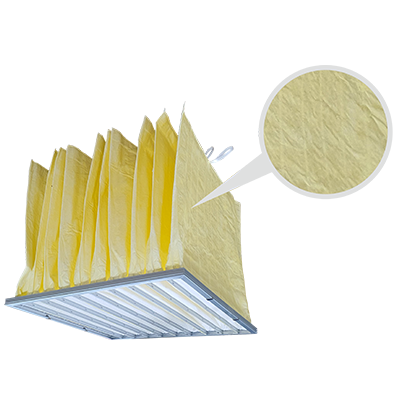

- 2nd VEE BAG filter (W610xL610xH560x10P)

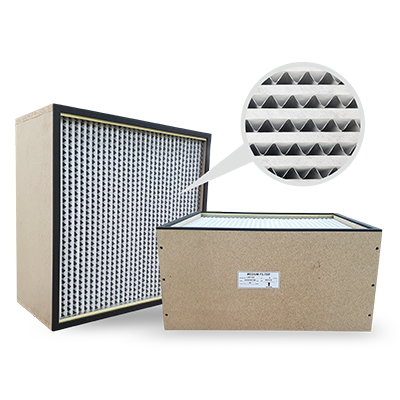

- 3rd MEDIUM filter (W610xL610x150T/292T)

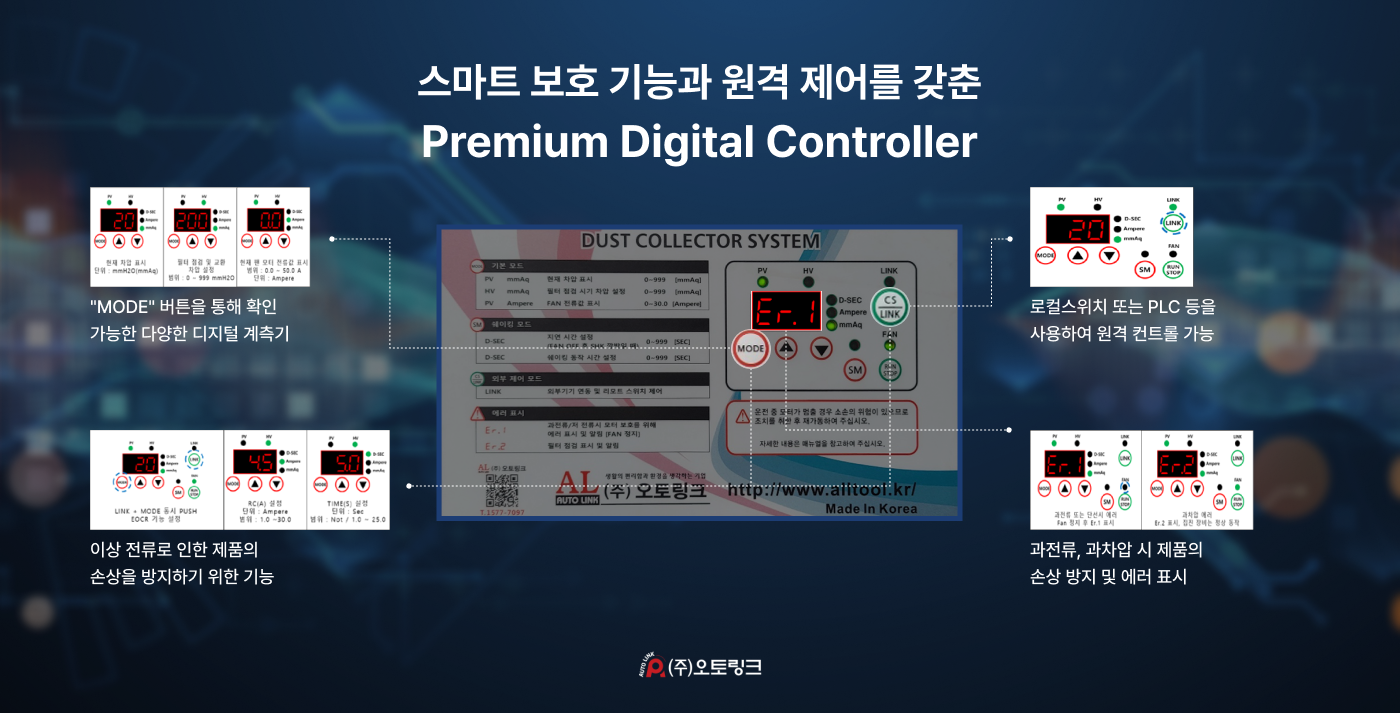

Product Features
Options
-
- Tertiary MEDIUM filter is a non-water soluble filter that can be changed to CFM (water soluble) or HEPA (smoke) in the event of water or smoke.
Video
Installation examples
View more
Fabrication, Installation, Licensing
One-Stop Support Autolink Inc.
Product inquiries and after-sales service
