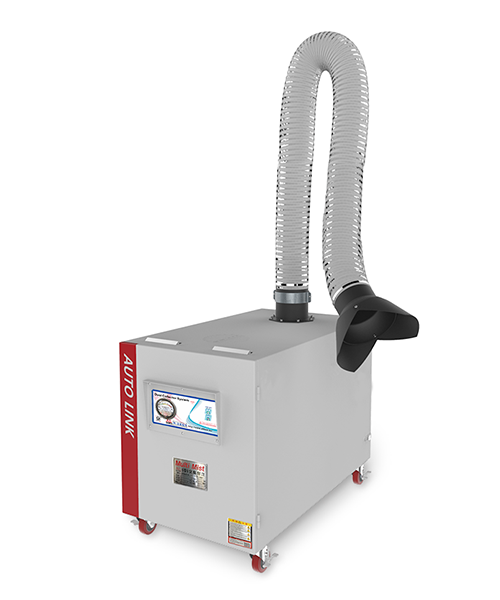

Mobile Welding Fume Extractors ALHM Series > Product

Page information

Author 최고관리자
Comments 0Case Views 3 Date 24-10-07 19:06

Keyword

Work repositioning, welding operations, flexible arms, 3-stage filter structure, fire protection

Where to use

Applied to industrial sites such as welding work (ARC, CO2, MAG, special welding) and places with inconsistent workspace

Installation examples

Product selection

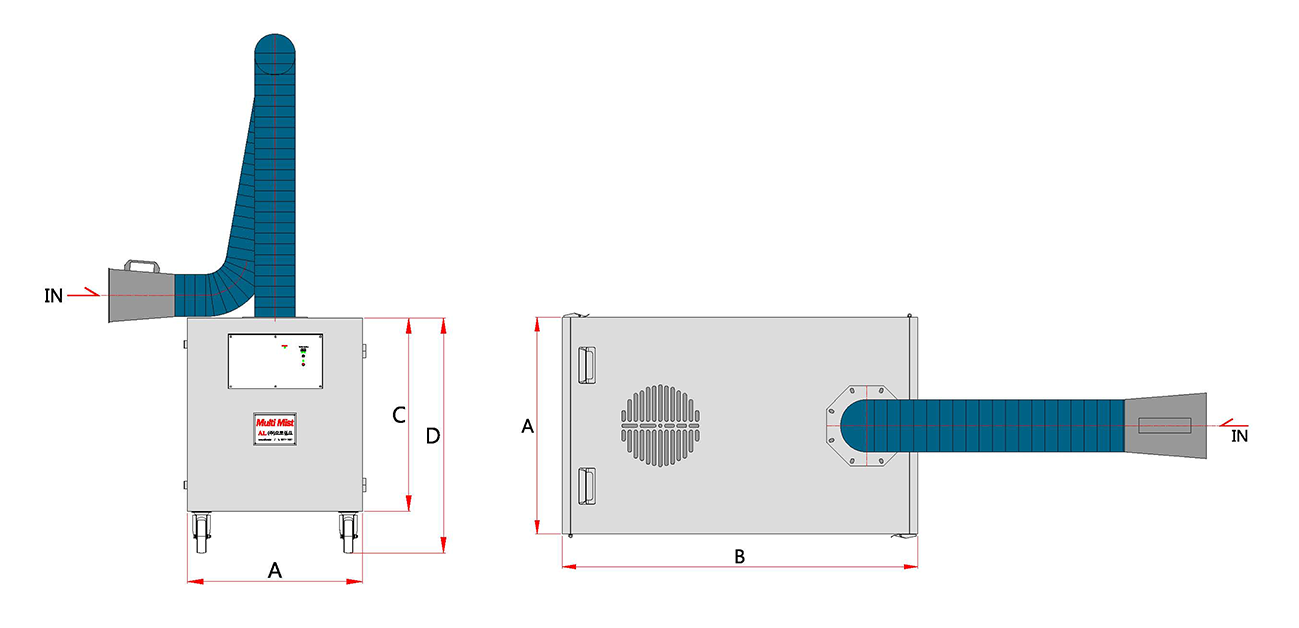

Specs

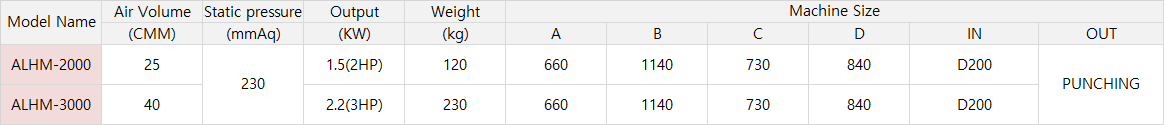

Product specifications

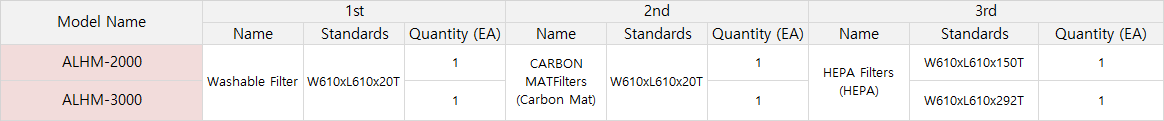

Filter specifications

Features

Filter Features

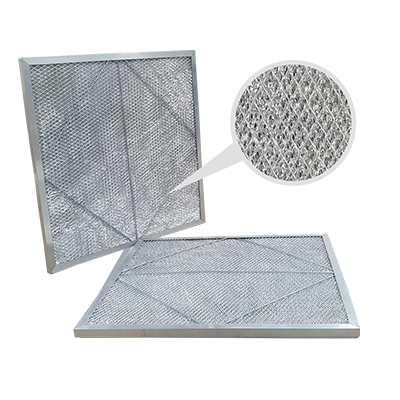

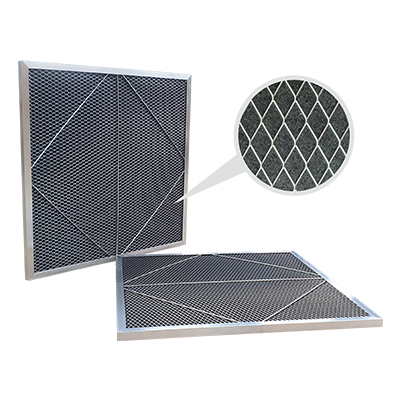

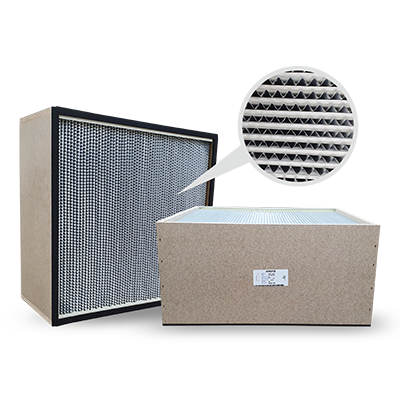

- 1st Washable Filter (W610xL610x20T) / 2nd Carbon Mat Filter (W610xL610x20T) / 3rd HEPA Filter (W610xL610x150T/292T)
- Prevents fires by primary blocking of spark particles

Product Features

- 3-stage filter structure increases filter life and improves removal efficiency (can capture more than 99.7% of dust with a particle diameter of 0.3㎛)

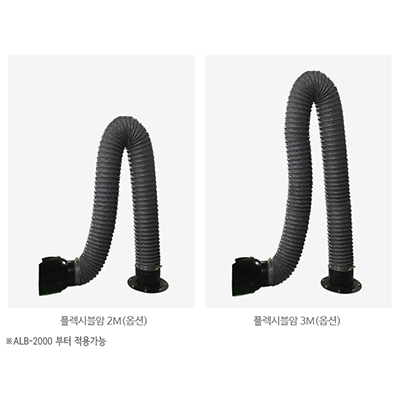

- Flexible arm attached to the main unit can be freely moved and fixed to the desired working position (front, back, left, right)
- If your workspace is not consistent, you can improve the lifespan of your filters with automatic tallying after use
- Useful and relatively inexpensive if you don't do a lot of welding work

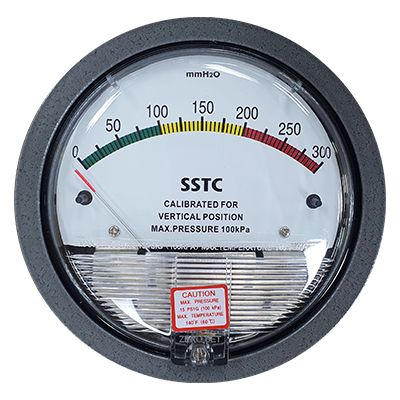

- Uses an analog differential pressure gauge
- Prevents damage to the product due to abnormal currents
- equipment startup
- can be remotely controlled using local switches or PLCs, etc.
- Prevent product damage and display errors in case of overcurrent, overpressure, etc.
