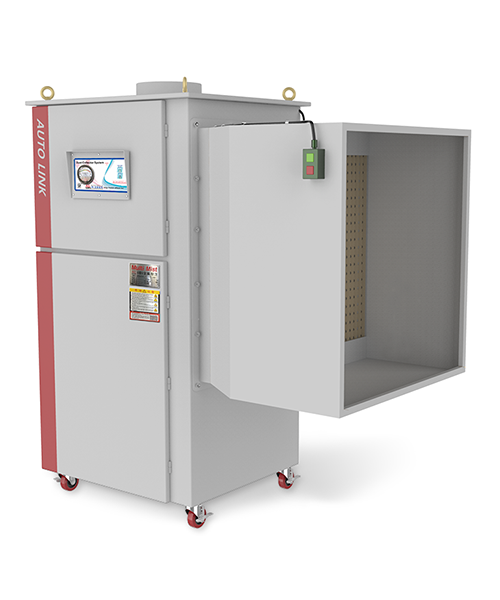

Paint Booth Dust Collector ALPB Series > Product

Page information

Author 최고관리자
Comments 0Case Views 3 Date 24-10-07 19:35

Keyword

Integrated dust collector, paint booth, space utilization, 5-stage filter structure

Where to use

For use in areas where paint is applied, spray cleaned, etc.

Installation examples

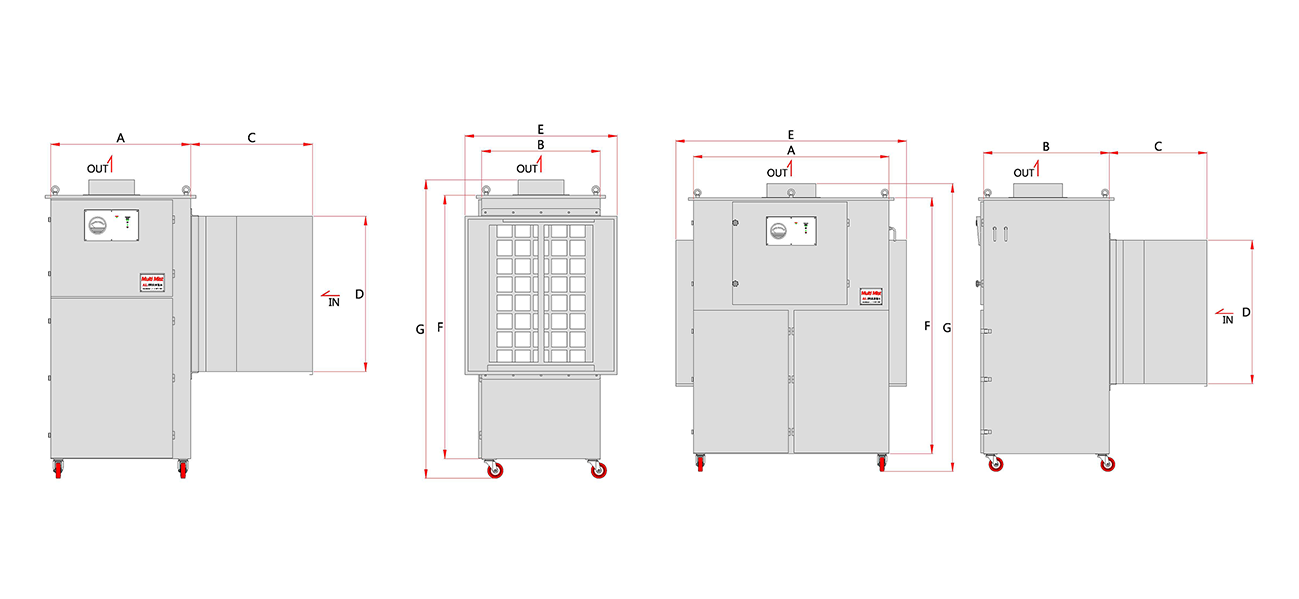

Product selection

Specs

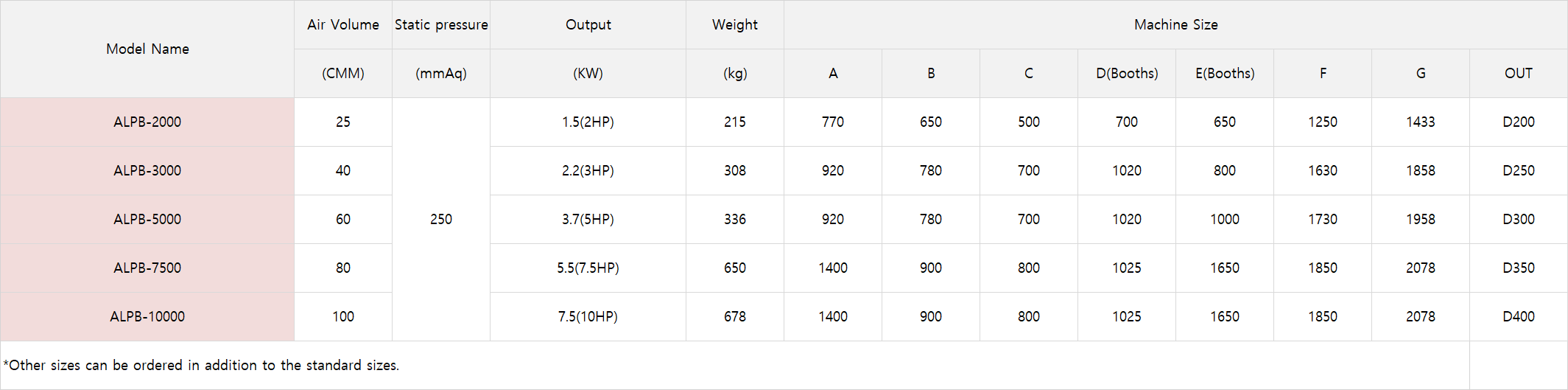

Product specifications

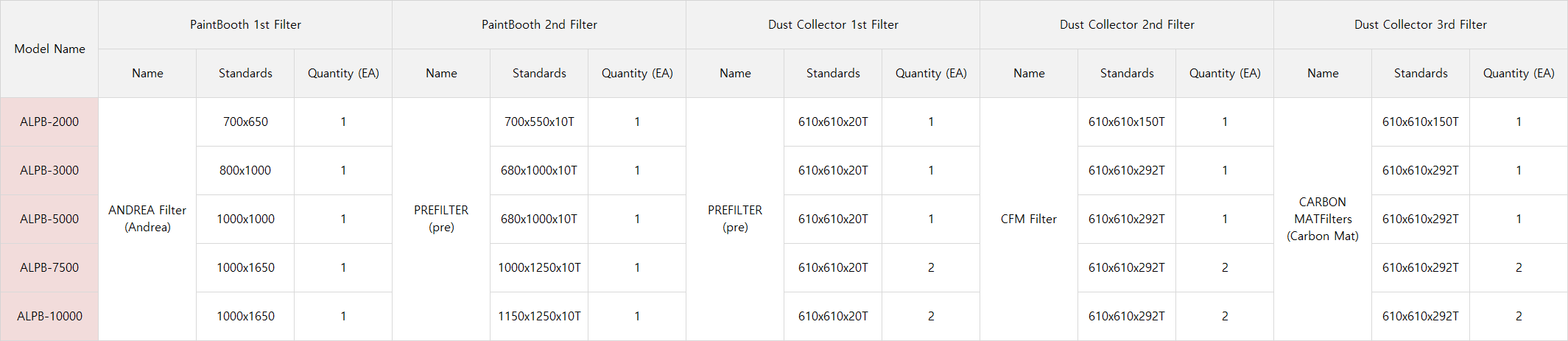

Filter specifications

Features

Filter Features

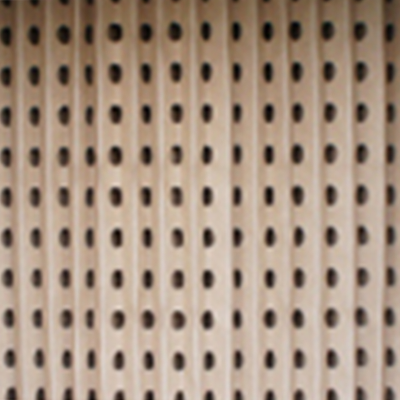

- Paint booth 1st ANDREA filter (Andrea)
- Extends the life of downstream filters by directly blocking paint particles

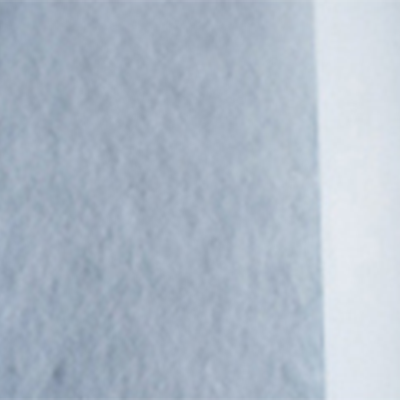

- Paint booth 2nd PRE filter (Pre)
- Uses a pre-filter made of polyester fibers to remove larger particles first

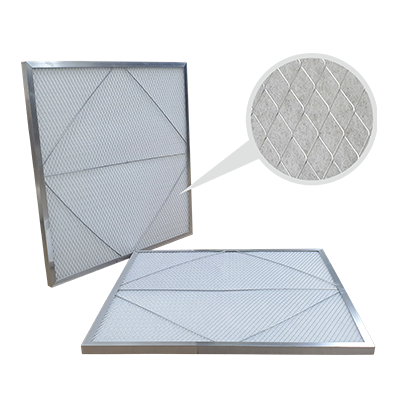

- Dust collector 1st PRE filter (610x610x20T)
- Uses a pre-treatment filter to capture relatively large particles of 3-30 microns

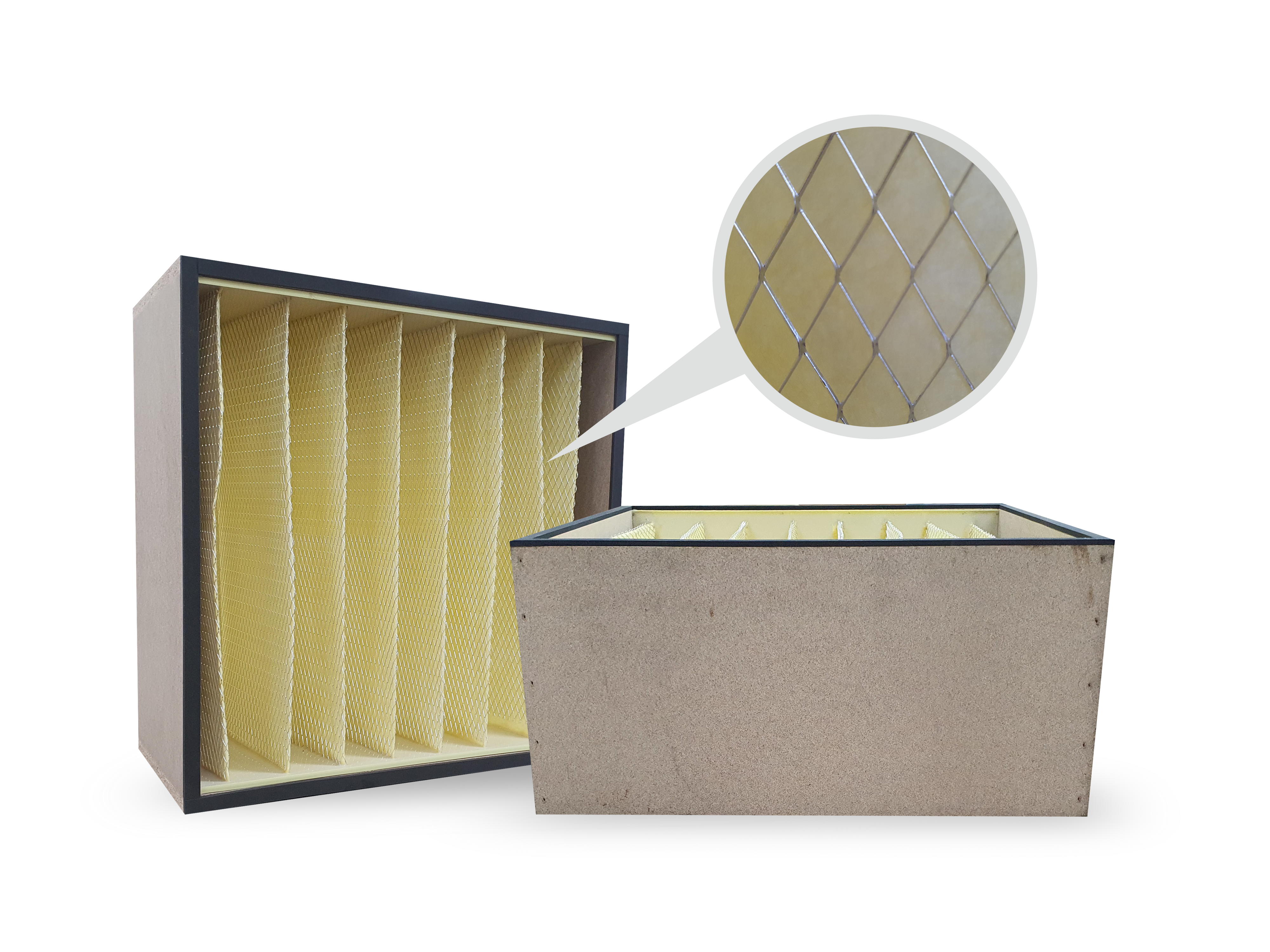

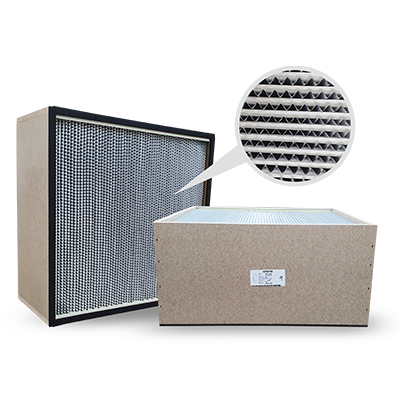

- Dust collector 2nd CFM filter (610x610x150T/292T)
- Captures 65-95% of 1 micron particles and blocks oil and moisture
- 3rd CARBON MAT filter (610x610x150T/292T)
- Removes organic solvents and odors
- A variety of harmful gases and offensive odors are removed using carbon filters

Product Features

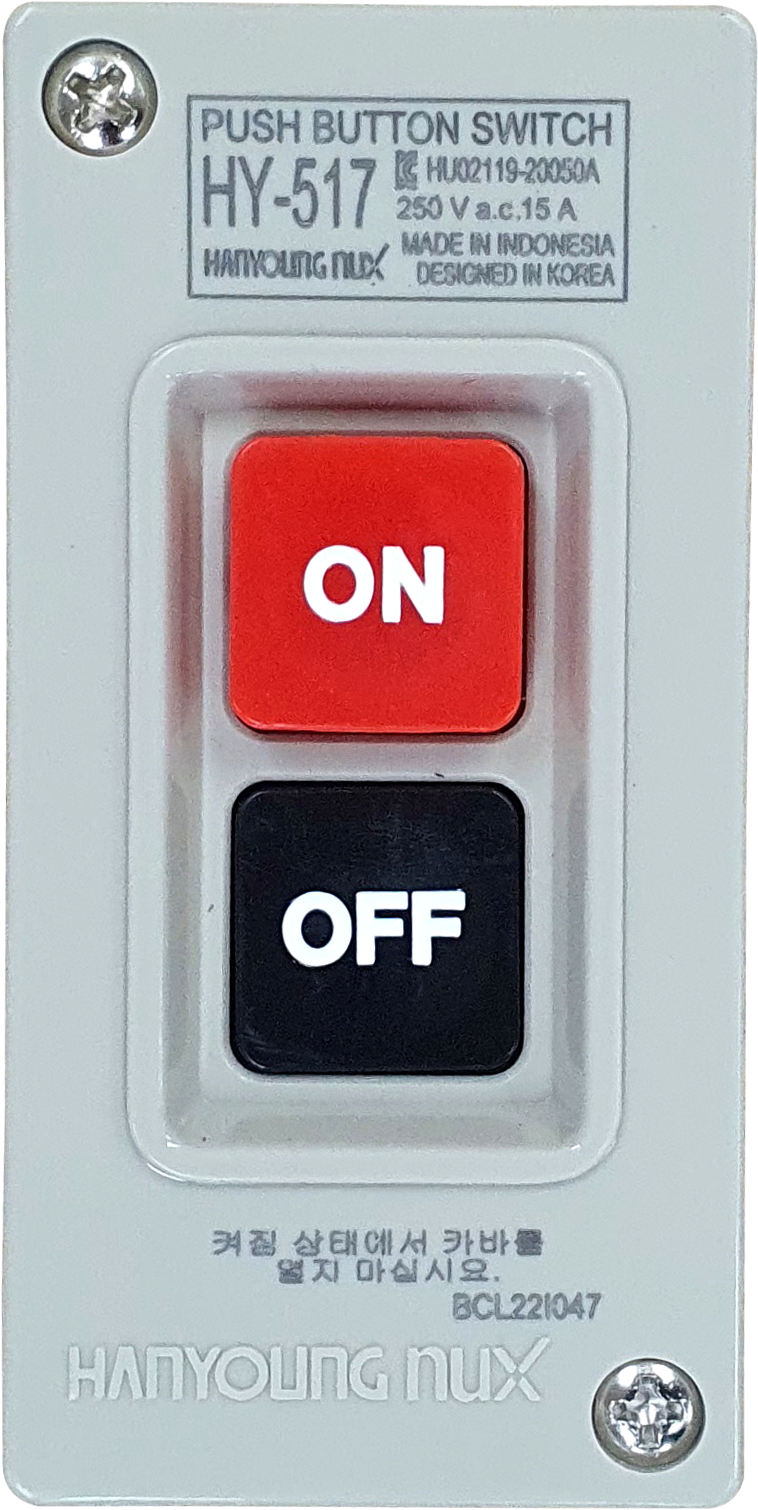

- Local switch makes it easy to power on even if the power button is in an elevated position or far away
- 5-stage filter structure extends filter life and improves removal efficiency

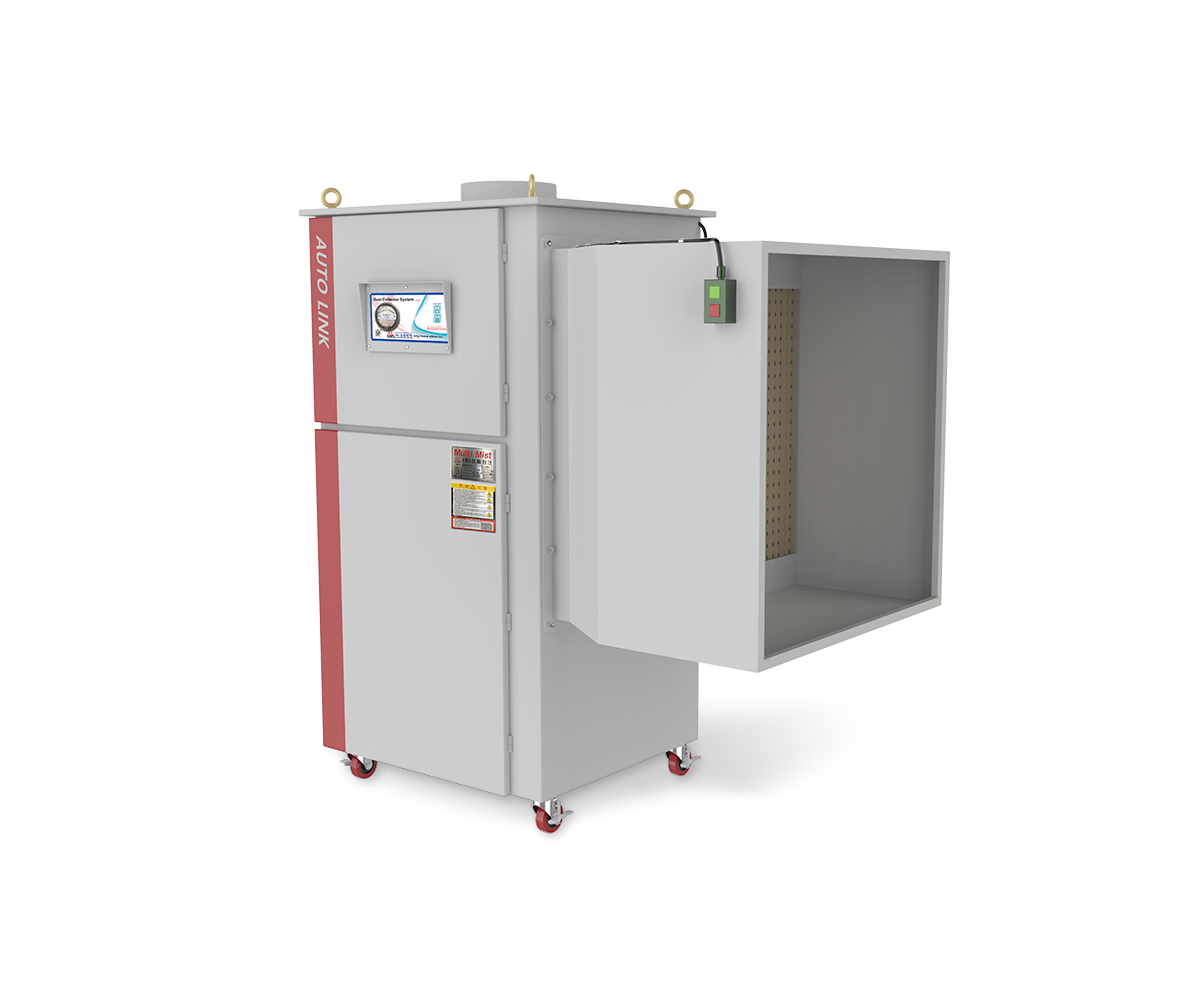

- Integrated dust collector and paint booth for convenient operation and space utilization
- No need for a separate work hood
- Not available for environmental licensing, contact us for licensing
