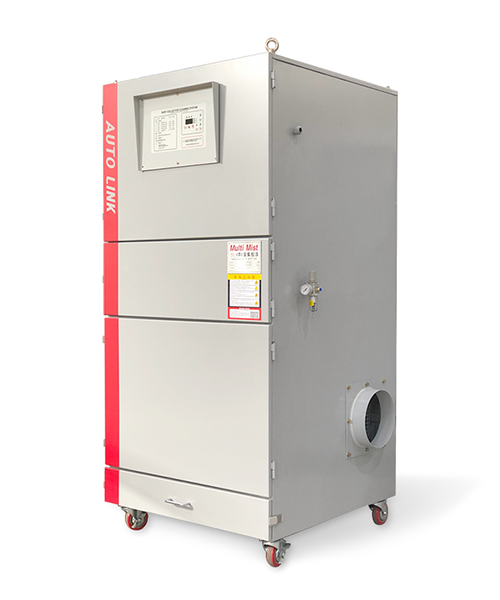

ALP Series Cartridge Type Dust Collectors ALP Series

Description

Keyword

Fine dust capture, Continuous running process, Automatic filter cleaning, Improved capture efficiency, Air pulse type, Environmental permit available

Where to use

Places where relatively large particles of dust are generated, such as planing, molding, grinding, drilling, acrylic processing, cutting, crushing, stone processing, cutting and cutting, grinding, mixing, packaging, etc.

Installation examples

Product selection

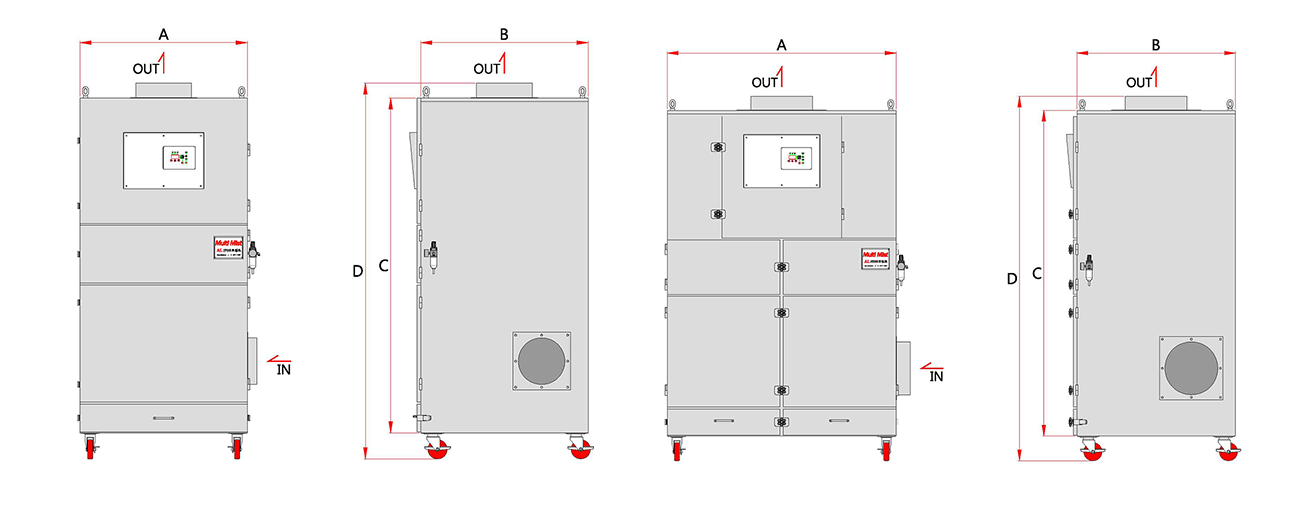

Specs

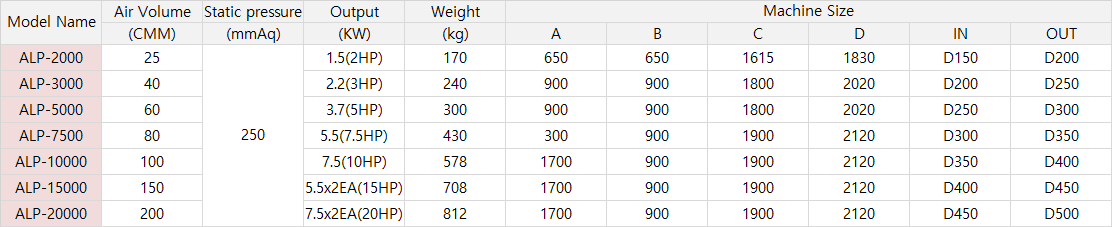

Product specifications

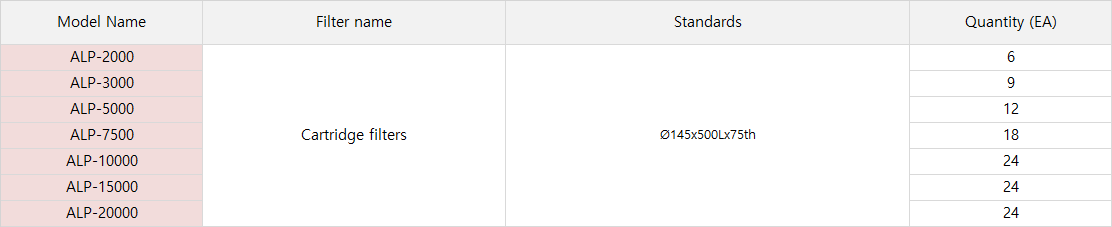

Filter specifications

Features

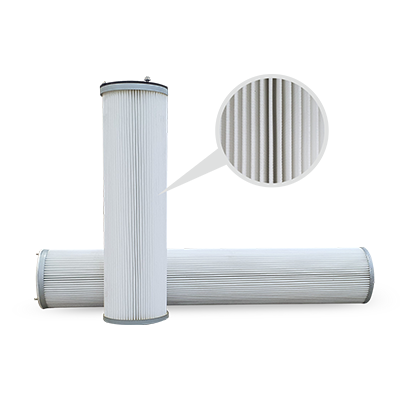

Filter Features

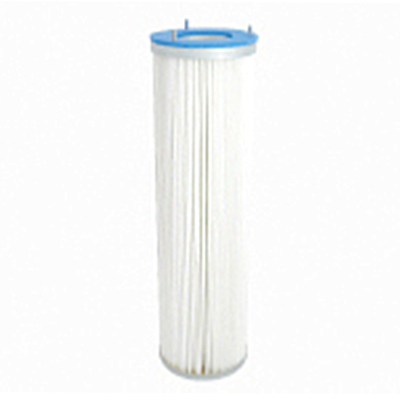

- Cartridge filter(Ø145x500Lx75th)
- Cartridge filters with enlarged filtration area by processing polyester filaments to improve capture efficiency

Product Features

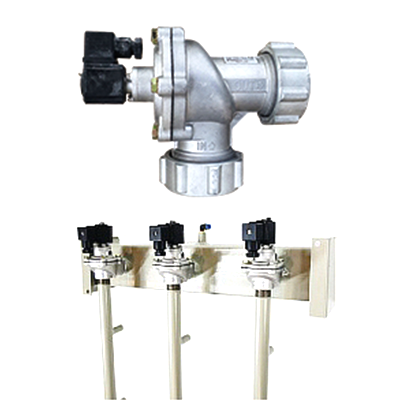

- Using compressed air from the air tank, the Air Pulse Jet method automatically blows compressed air at regular intervals to efficiently clean the filter at regular intervals
- For use in dusty or continuously running processes
- Effective for capturing fine dust and long-lasting suction power
- Auto-cleaning of the filter reduces the filter's change interval by steaming (auto-dewatering)

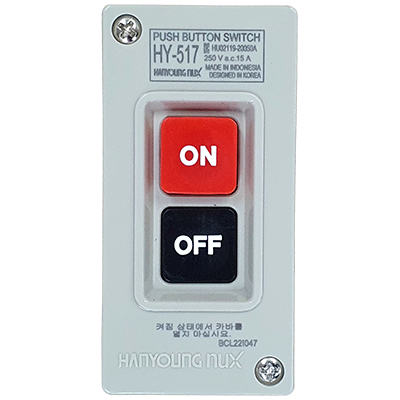

- Local switch makes it easy to operate the power even if the power button is in an elevated position or far away
- .

Options

- Membrane Filter (Ø145x500Lx75th): High-precision filter with fluororesin coating, captures over 99% of particles above 0.3㎛.
  Dust Collection Tray Options:
  Drawer: Cost-effective, low height.
  One-Touch Box: Easy discharge, plastic lining option.
  Butterfly Valve: Dust discharge post-operation, minimal leakage.
  Rotary Valve: Collects dust during operation, supports ton bags.
  Slide Gate: Manual dust release.
  Flexible Arm: Positionable arm for convenience, compatible with various hoses.
  Power Meter: Records energy usage.
  Measurement Port: Emission tracking.
  Safety Rails & Ladder: Compliance with safety requirements.

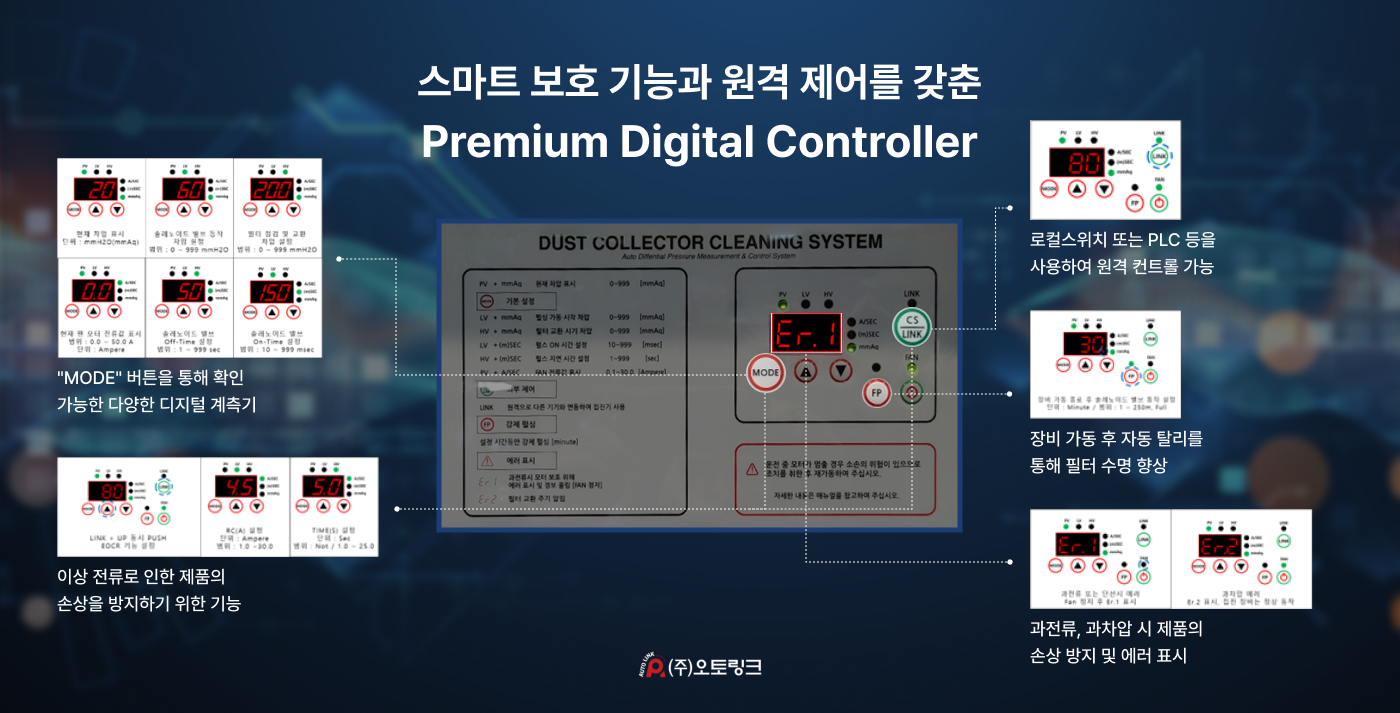

  Control Panel: Monitors and controls collector.
  Environmental permit parts available.
