ALPV Series

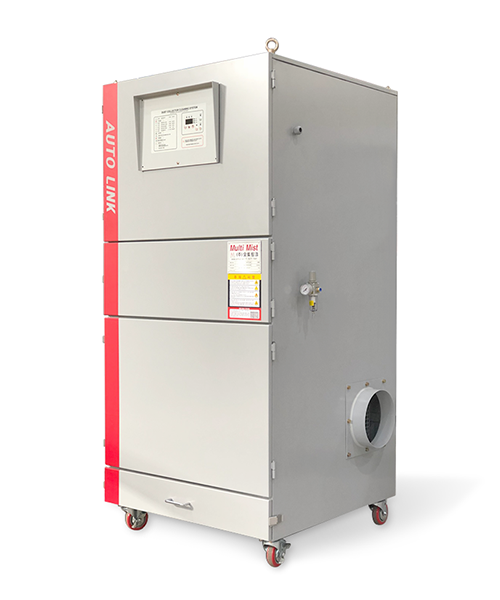

High Vacuum Cartridge Type Dust Collectors ALPV Series
Description
Description
Keyword
High pressure ring brower, continuous operation, easy to change filters, high static pressure, durable, environmentally acceptable
Where to use
For mold machining operations, press chip recovery, shot blasting, powder conveying, and extended cleaner applications
구매하기Specs

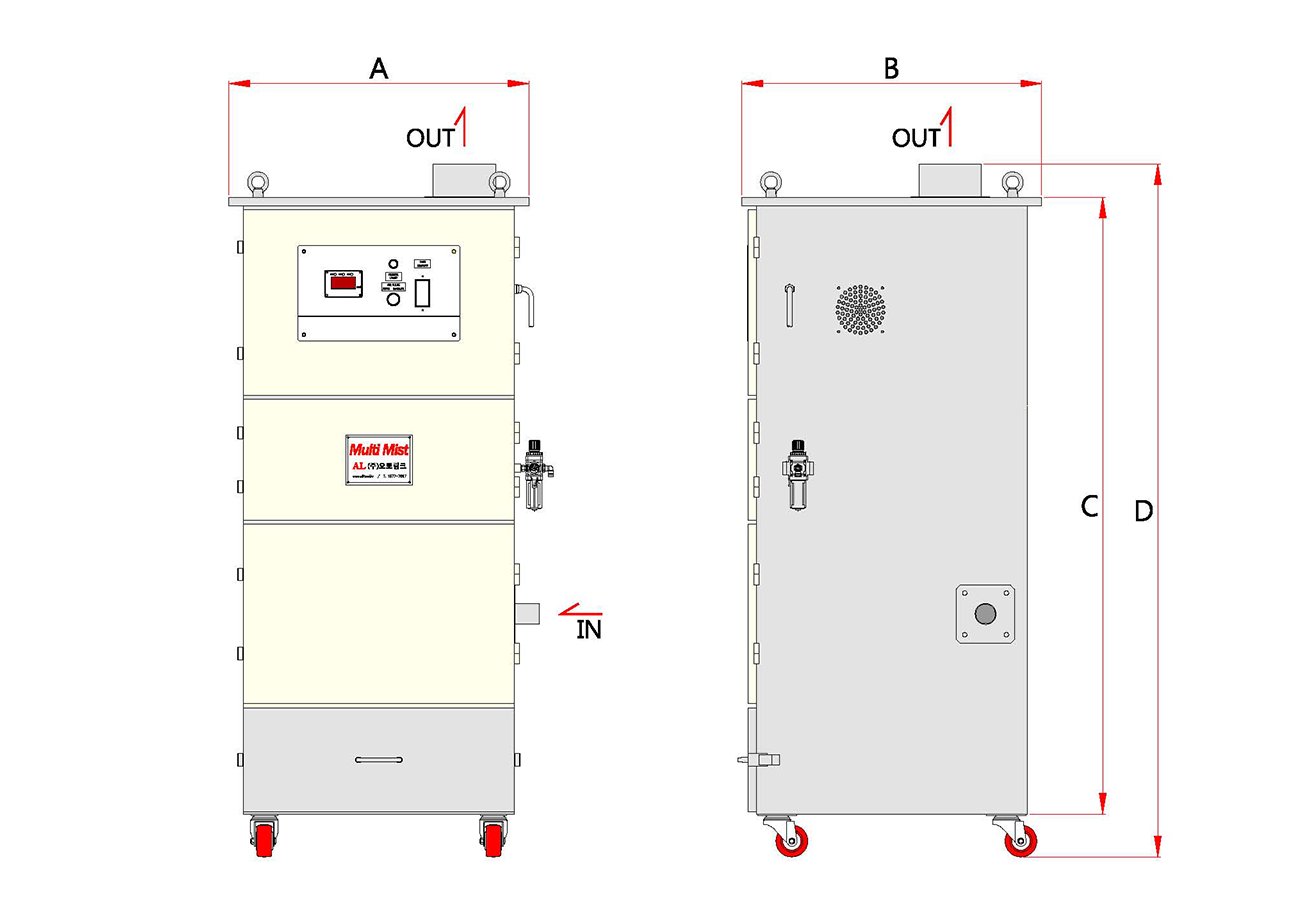

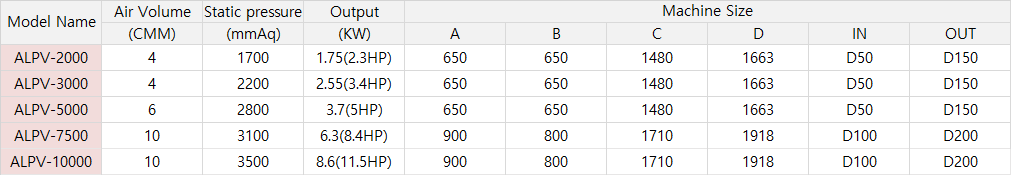

Product specifications
Filter specifications
Features

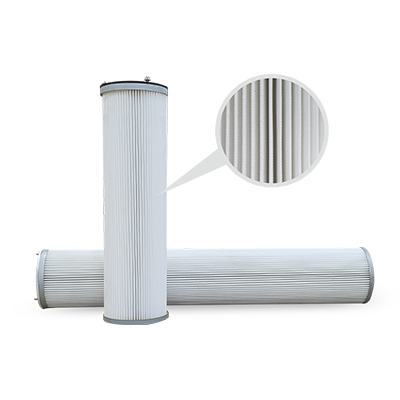

Filter Features
-
- Cartridge filter(Ø145x500Lx75th)
- Cartridge filters with enlarged filtration area by processing polyester filaments to improve capture efficiency
Product Features
-

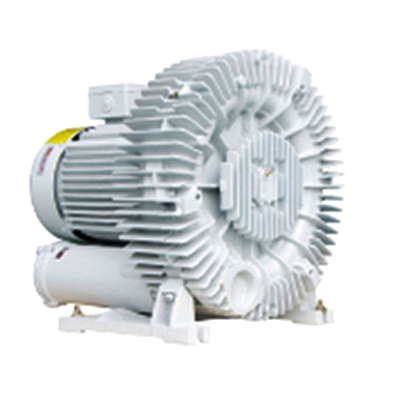

- The ring brower built into the top of the main body is durable and has a high static pressure, allowing for smooth suction of dust and chips that fall on the floor
- High-pressure ring brower for use in high-pressure, dusty, or continuous operation applications
- Unlike vacuum cleaners, it can be used continuously
-

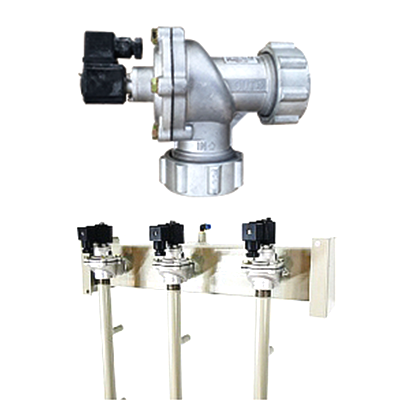

- Using compressed air from the air tank, the air pulse jet method automatically blows compressed air at regular intervals to efficiently clean the filter periodically
- Effective at capturing fine dust and has long-lasting suction power
- Autocleaning of the filter reduces the change interval of the filter (auto-detergent).
-

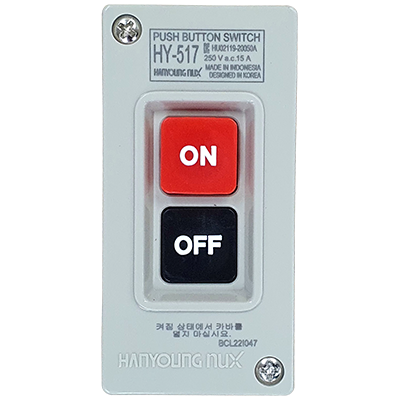

- The local switch allows for easy power operation even when the power button is in a high position or far away
Options
-

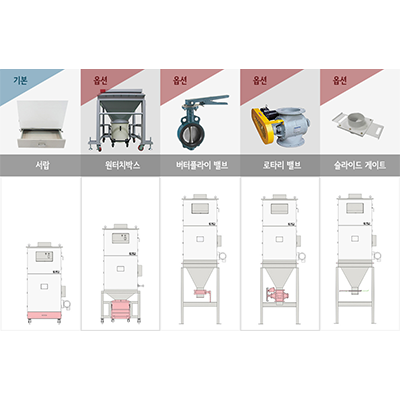

- Dust Collection Unit Lower Dust Container Change Available
After cleaning, dust is collected in the lower drawer-type container for easy disposal.
Drawer (Basic): Affordable, easy to move, with no separate container, lowering height.
One-Touch Box (Option): Simplifies disposal with an inner bag.
Butterfly Valve (Option): Allows dust discharge with minimal leakage.
Rotary Valve (Option): Collects dust during operation, compatible with ton bags.
Slide Gate (Option): Manually opens to recover dust from the hopper.
Flexible Arm: Easily movable and fixable for convenience.
Power Meter: Measures and records power consumption.
Measuring Point (Stack): Measures discharge volume.
Safety Rail & Ladder: Ensures safety and meets legal requirements.

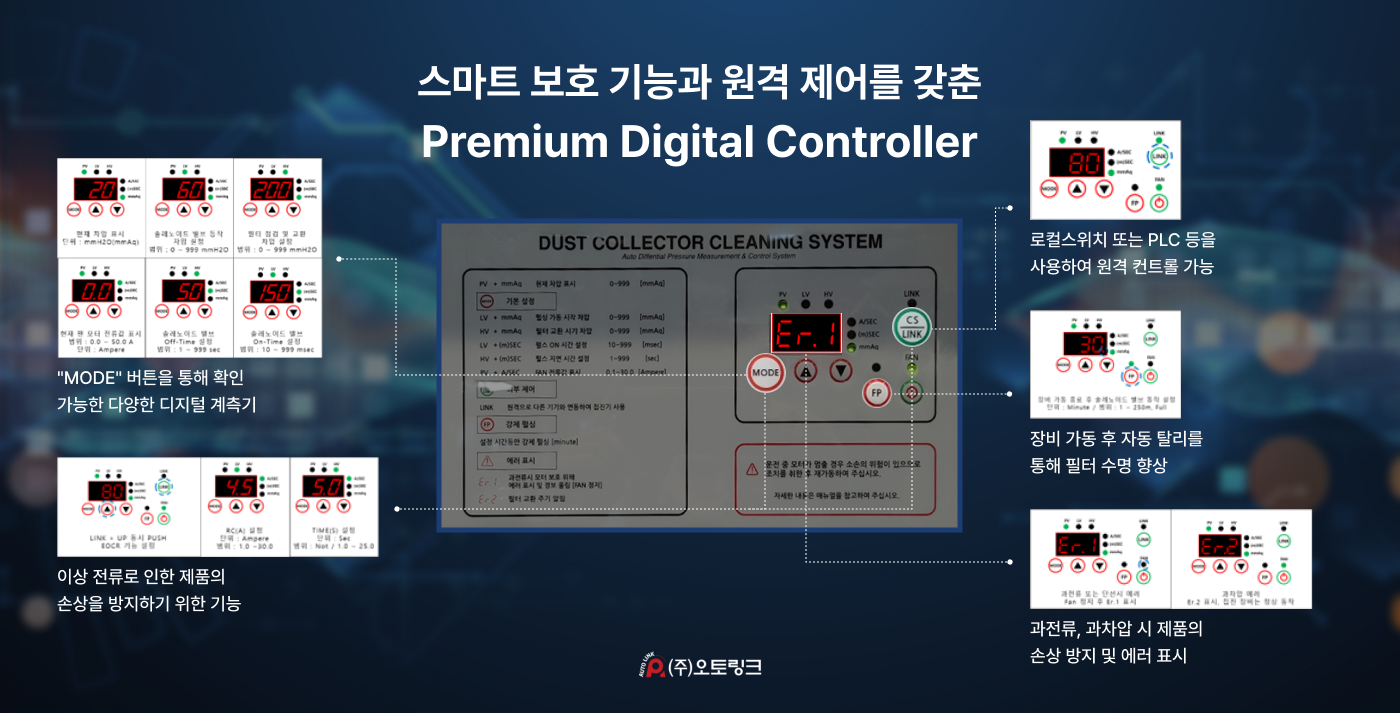

Control Panel: Monitors and controls the dust collector.
- Dust Collection Unit Lower Dust Container Change Available
Video
Installation examples
View more
Fabrication, Installation, Licensing
One-Stop Support Autolink Inc.
Product inquiries and after-sales service
