Dust Collector > Product

Page information

Author 최고관리자
Comments 0Case Views 2 Date 24-09-05 20:13

Keyword

SUS304, Earth leakage protection, chip isolation, increased durability, economical

Where to use

Industrial machine tools MCTs, CNC lathes, grinders, drilling machines, dischargers, cleaning equipment, etc. where mist is generated

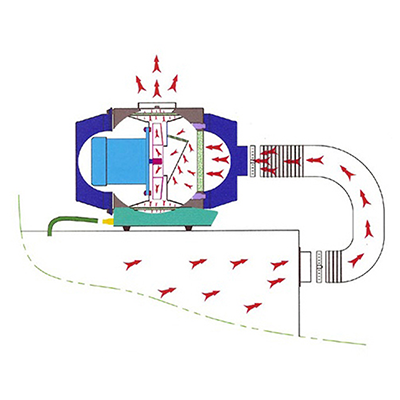

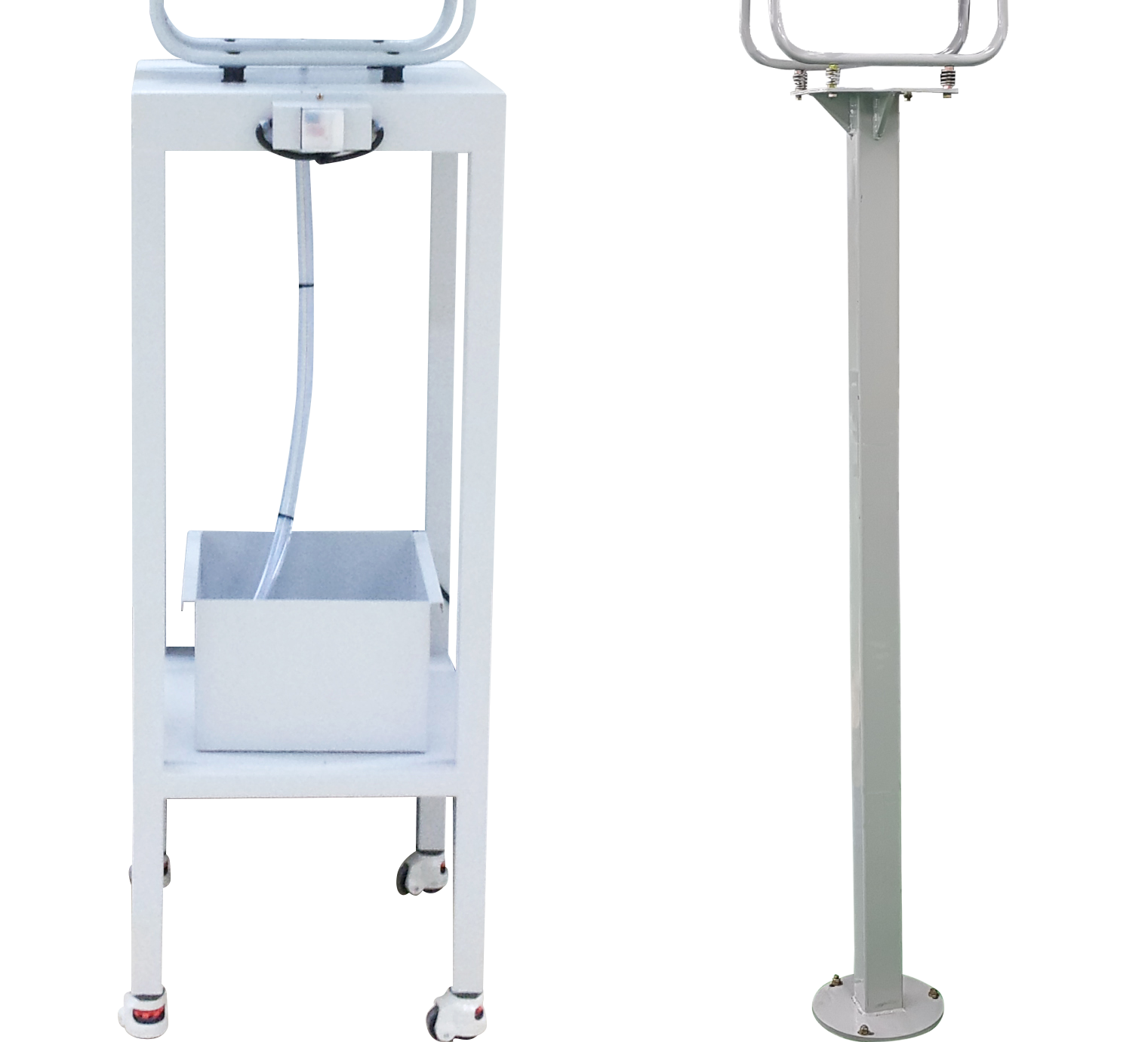

Installation examples

Product selection

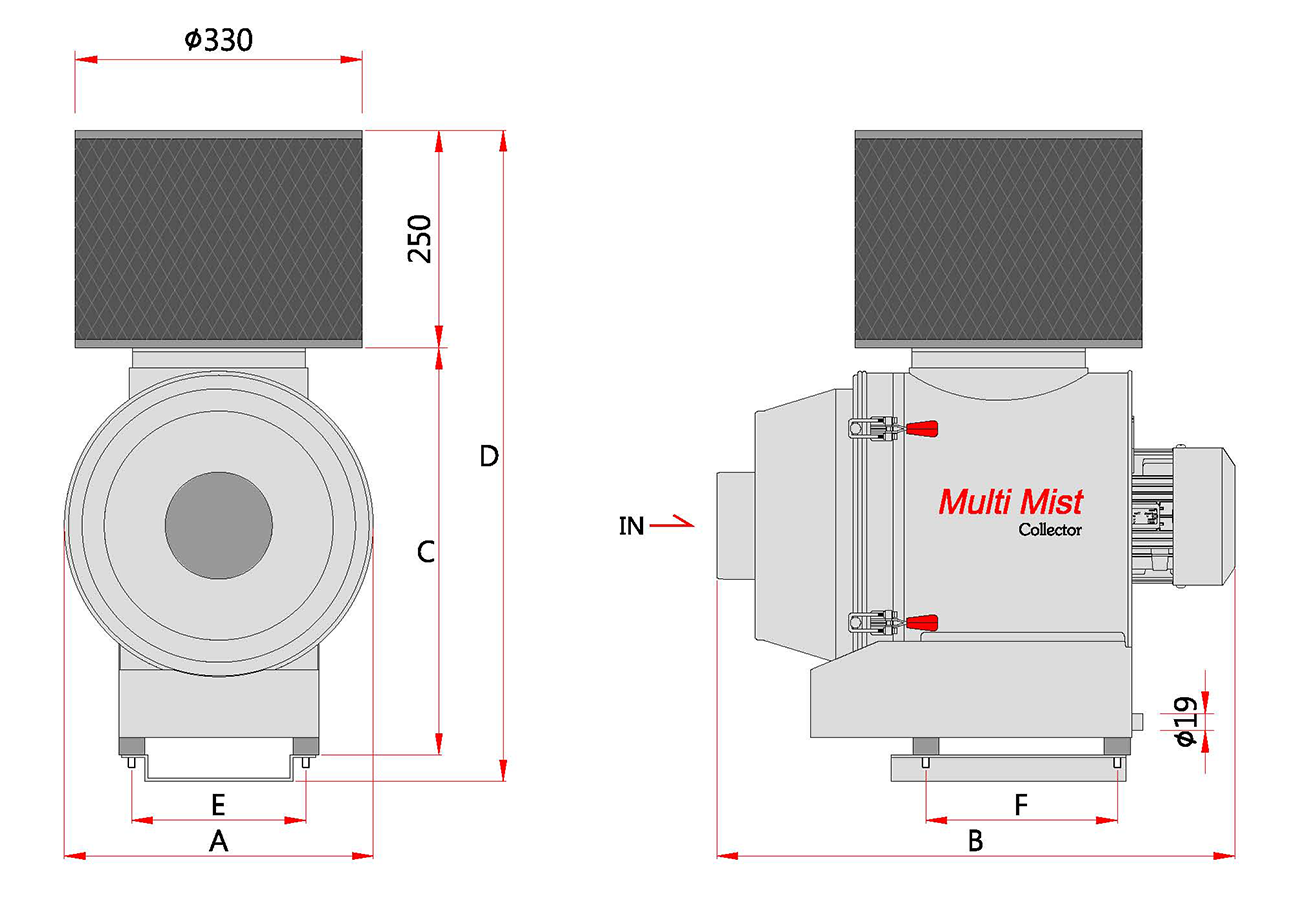

Specs

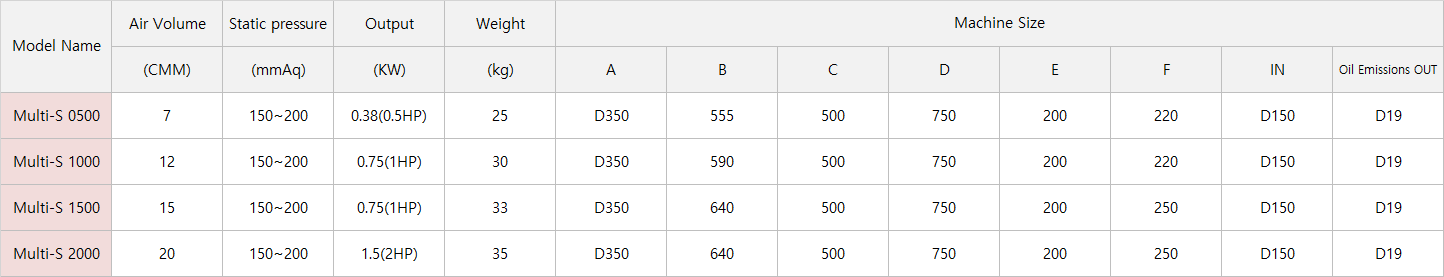

Product specifications

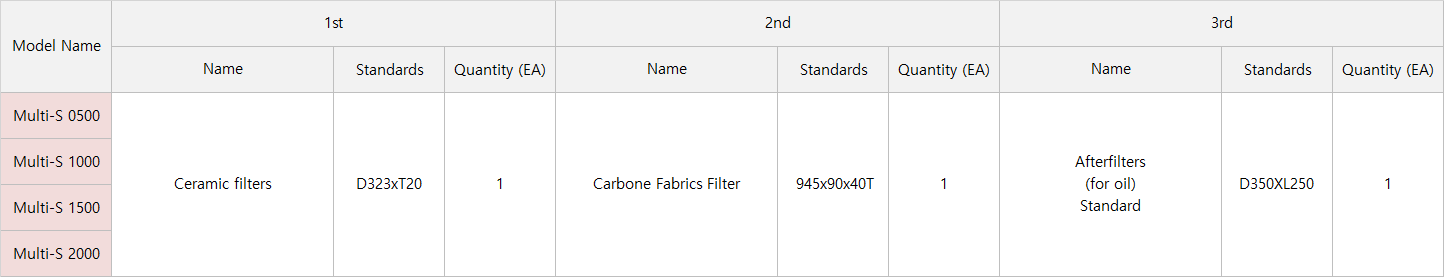

Filter specifications

Features

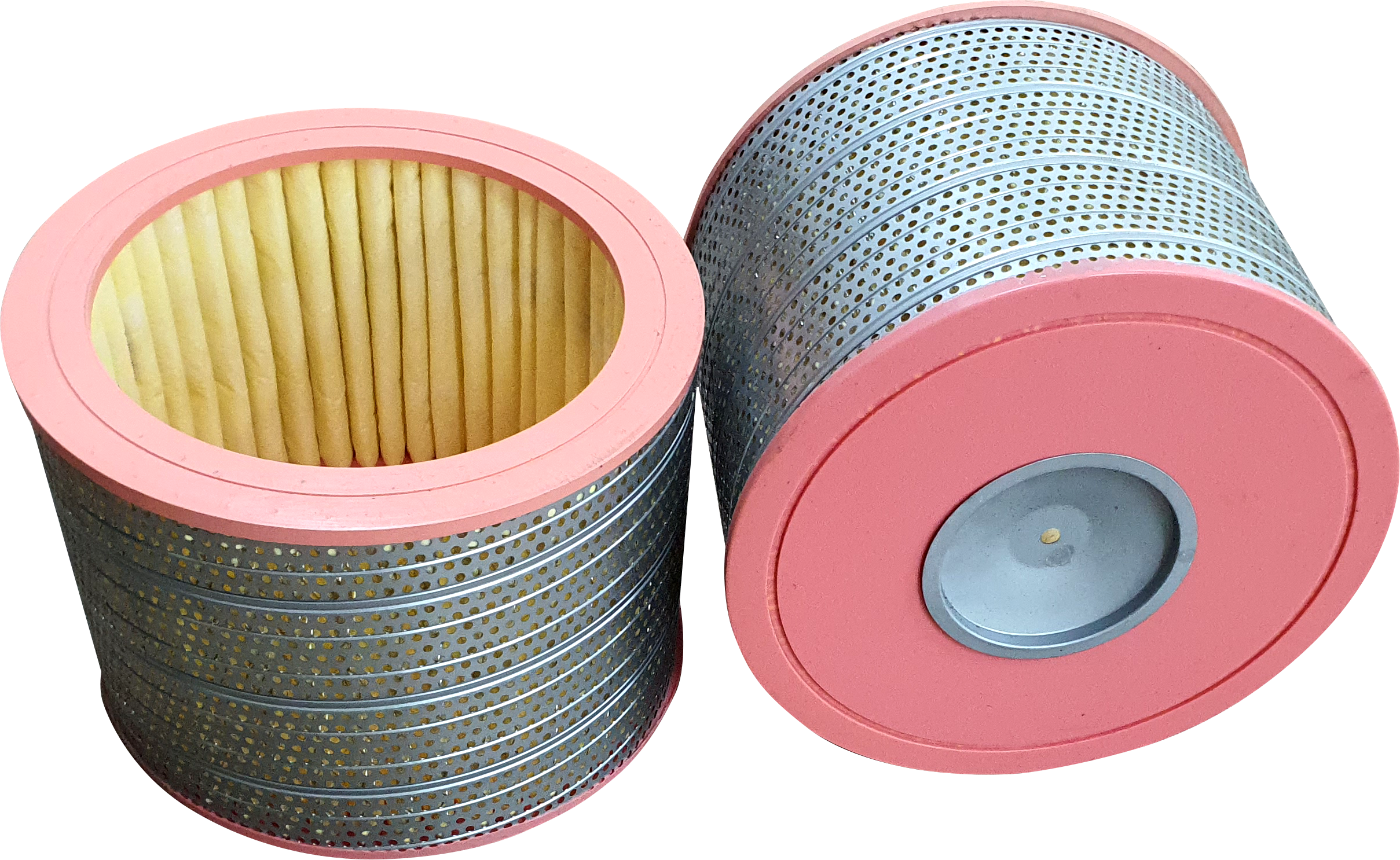

Filter Features

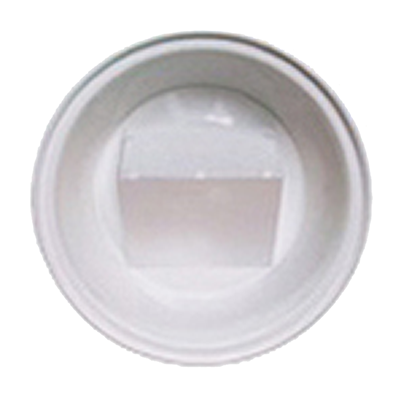

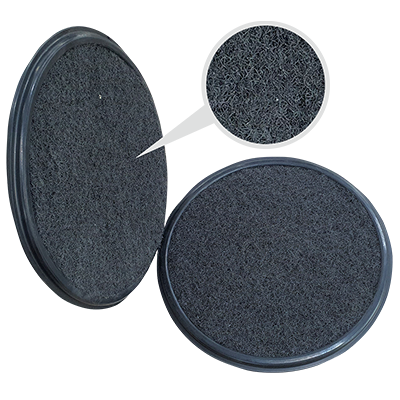

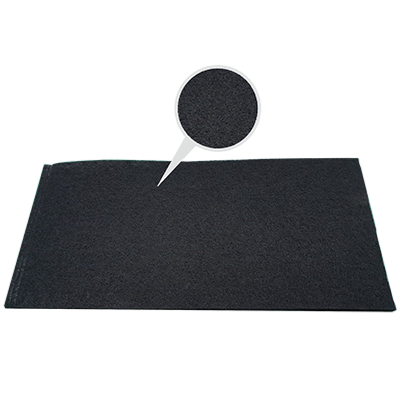

- Primary ceramic filter (D323xT20) / Secondary cardboard fabric filter (W250xL1025x3T) / Thirdary afterfilter (D350xL250)
- Mist contained in the fluid is condensed and discharged to the bottom, and the filter can be cleaned or replaced for use
- Rubber gasket secures filter in place
- Keep chips or other debris out of the impeller to keep it optimally balanced
- Available for cleaning or replacement

Product Features

- BoundaryCover

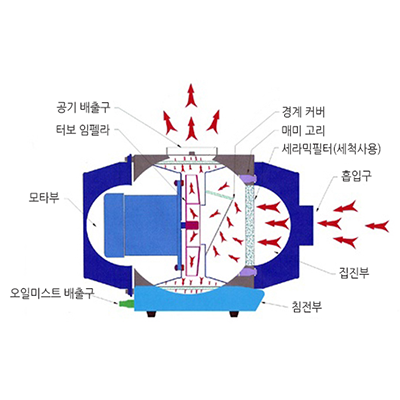

- By blocking the reverse flow of the mist collected at the bottom, the direction of the gas is directed to the top and condensed to enhance the capture effect

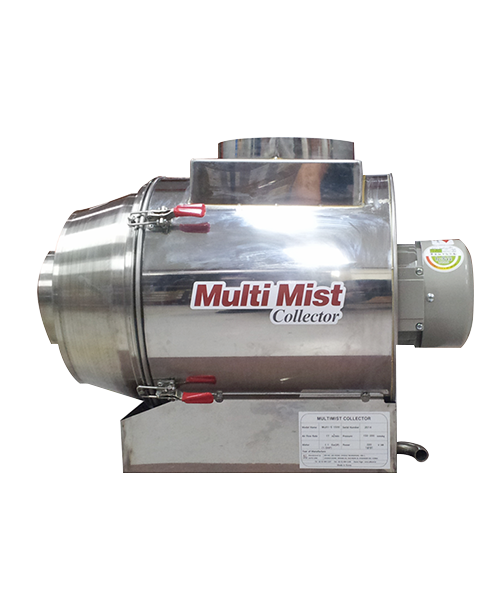

- SUS304 material does not rust, making it easy to use in cleaning equipment
- Kinematic design increases the durability of the product and practical structure makes it more competitive in price compared to other products of the same capacity
- Inhaled oil, moisture, etc. are discharged to the side without passing through the motor, protecting the motor and fundamentally blocking electric leakage, which is the cause of dust collector motor failure
- The practical design allows for easy disassembly and assembly by anyone, as both the inner and outer carbars can be disassembled for cleaning with just a one-touch lever opening
- Inhaled oil and moisture are discharged to the side without passing through the motor to protect the motor, fundamentally blocking the leakage that causes the failure of the dust collector motor.
- Chip separation is possible to prevent damage to the turbo type impeller
