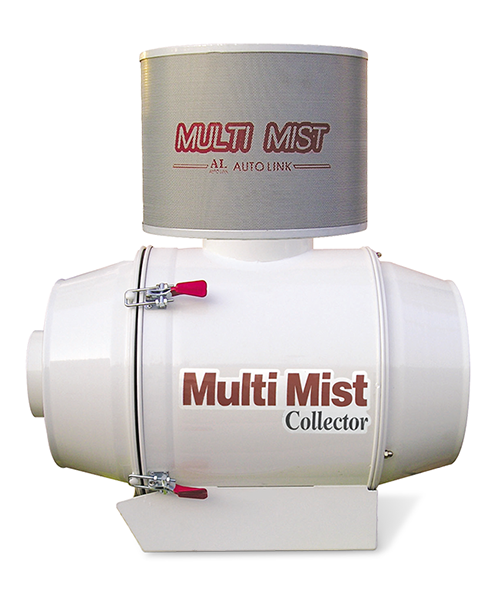

Multi Series Small Oil Mist Collector (Horizontal)

Description

Keyword

Mechanical design, increased durability, leakage isolation, motor protection, chip isolation

Where to use

Industrial machine tools Places with low volumes of water-soluble and non-water-soluble mists, such as MCTs, CNC lathes, grinders, drilling machines, dischargers, etc.

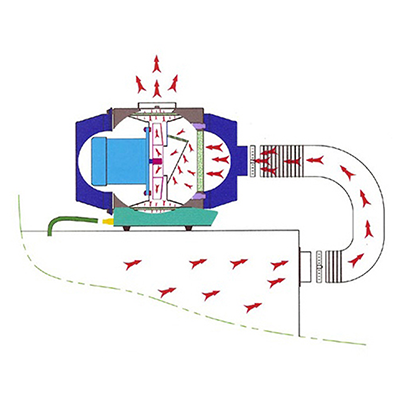

Installation examples

Product selection

Specs

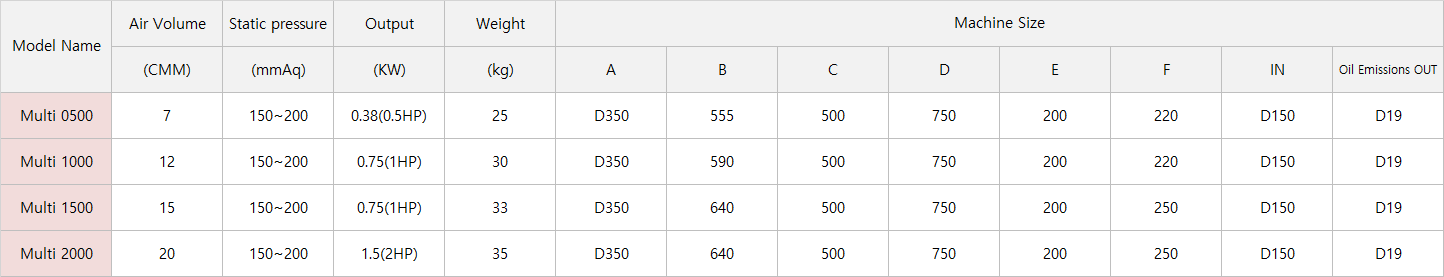

Product specifications

Filter specifications

Features

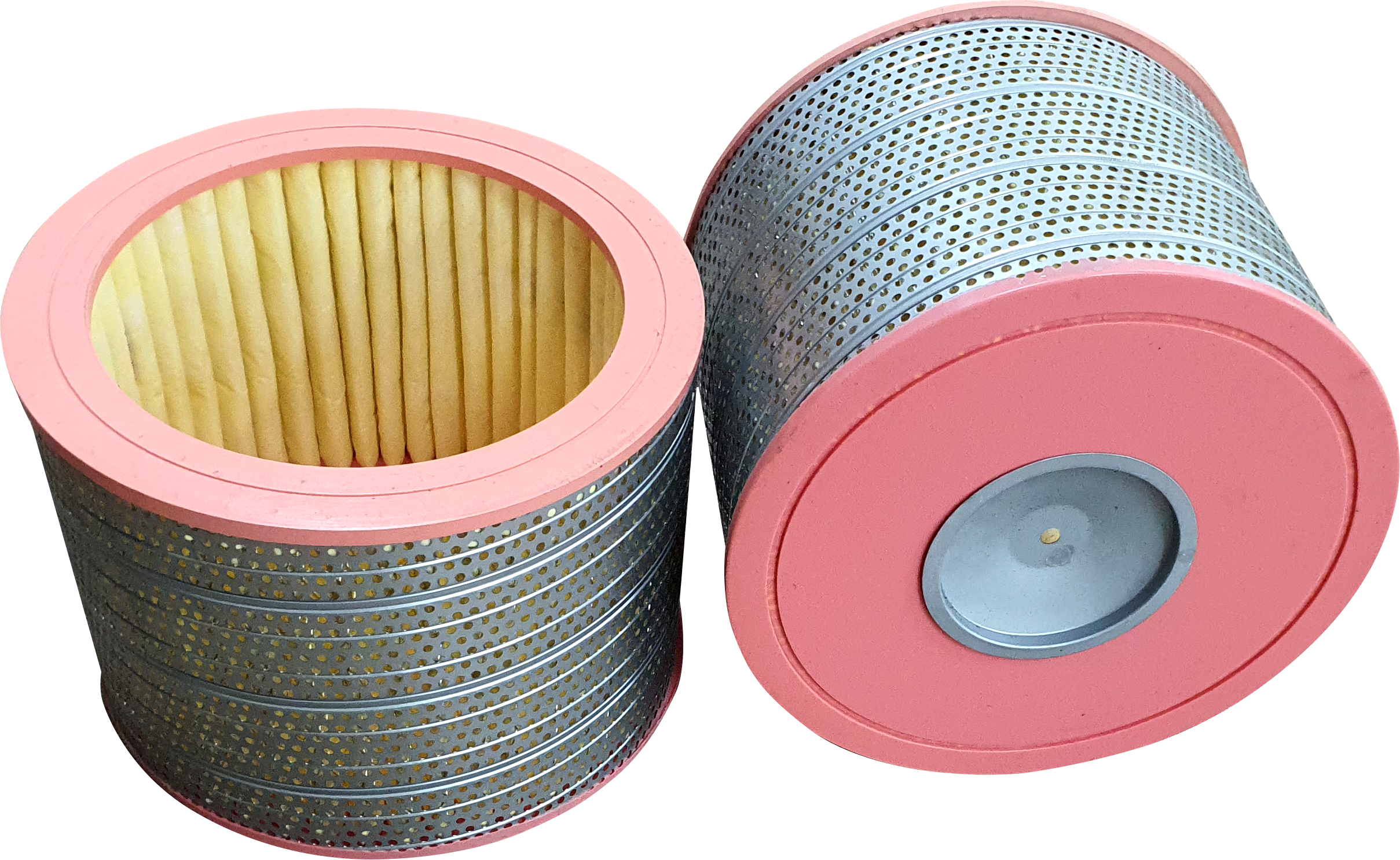

Filter Features

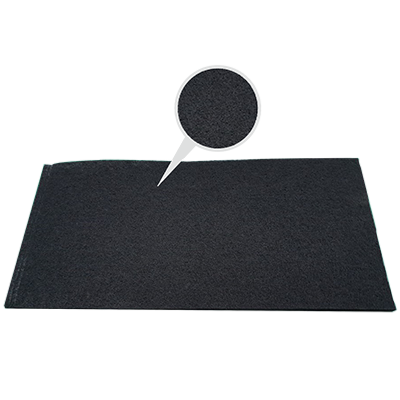

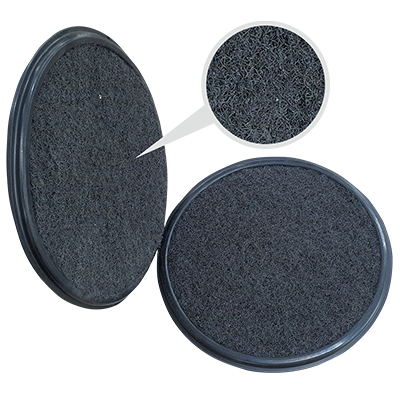

- Primary ceramic filter (D323xT20) / Secondary cardboard fabric filter (W250xL1025x3T) / Thirdary afterfilter (D350xL250)
- Mist contained in the fluid is condensed and discharged to the bottom, and the filter can be cleaned or replaced for use
- Rubber gasket secures filter in place
- Chips or other foreign matter can be prevented from entering the impeller and kept in optimal balance
- Available for cleaning or replacement

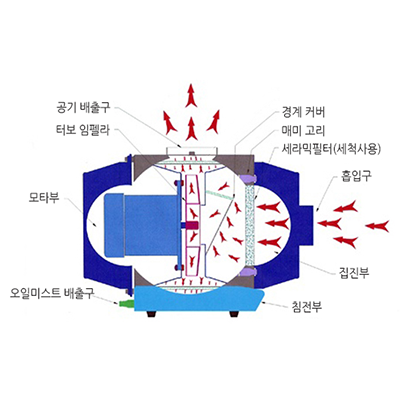

Product Features

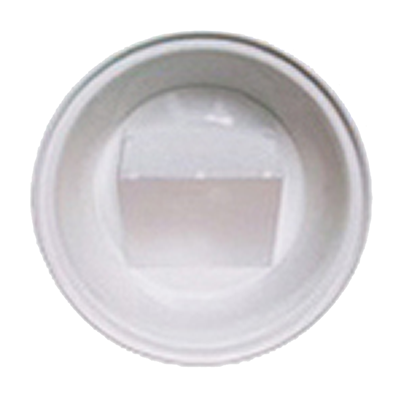

- BoundaryCover
- Blocking the reverse flow of the mist collected at the bottom to direct the direction of the gas to the top and condense it to enhance the capture effect
- Increasing the durability of the product with a mechanical design and taking a superior price competitiveness compared to other products of the same capacity with a practical structure
- It can capture various dusts, wet, dry, fume, gold and silver, etc. for various applications, making it a versatile dust collector
- Practical design allows for easy disassembly and assembly by anyone, as both the inner and outer carbars can be disassembled for cleaning by opening a one-touch lever.
- Protecting the motor by discharging the sucked oil and moisture to the side without passing through the motor, fundamentally blocking the leakage that causes the failure of the dust collector motor
- It can separate chips to prevent damage to the turbo type impeller

Options

- Tertiary afterfilter can be changed according to the application: Wet (for oil) 20㎛ - basic / Dry (for dust) 30㎛ / HEPA (for smoke) 3-5㎛/ / Dust collector mount applicable: Mount applicable up to 1400~2200 length / Separate movable mount applicable
