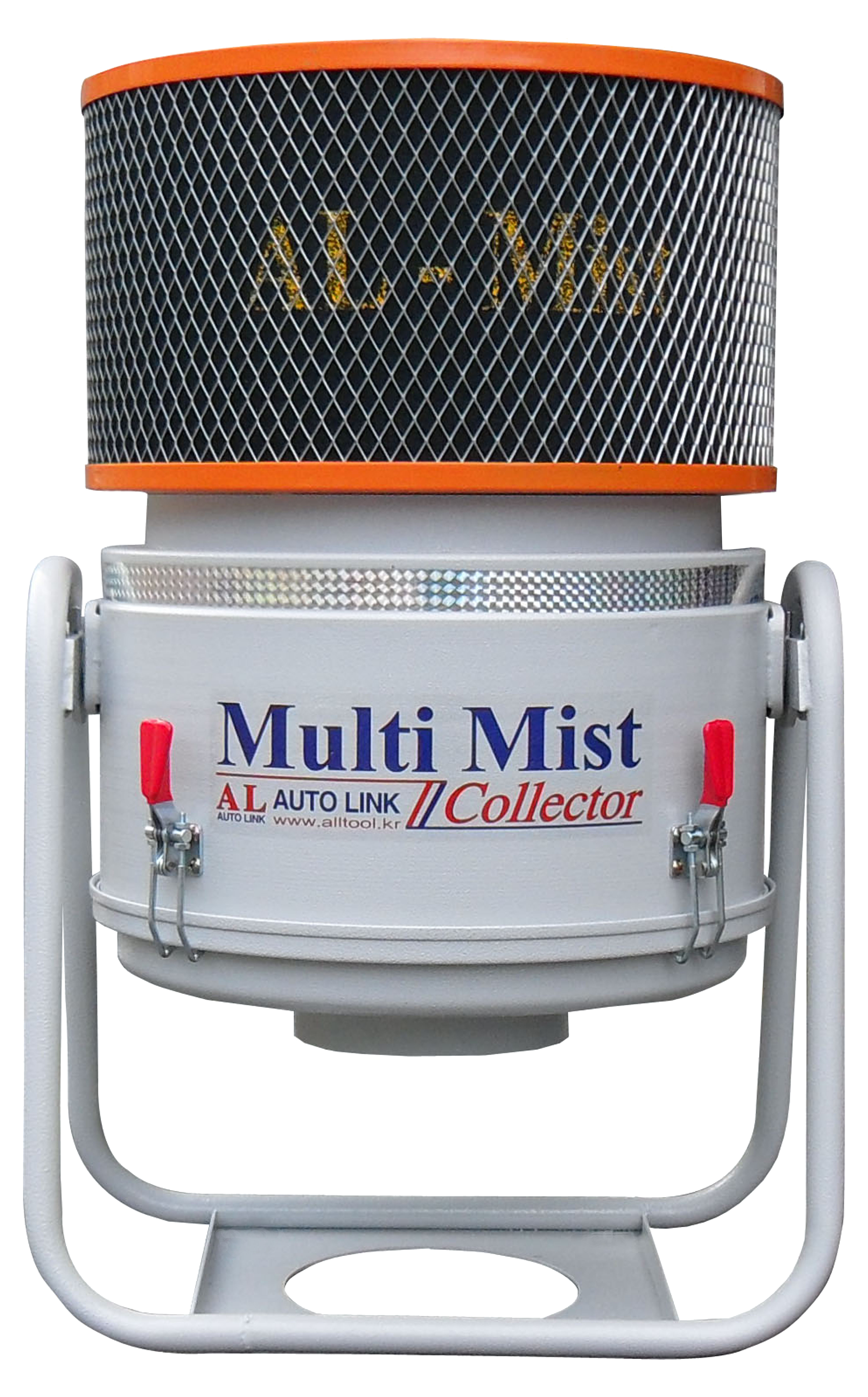

AL Series Small Oil Mist Collector (Vertical)

Description

Keyword

Angle adjustment, earth leakage protection, motor protection, vertical structure, capture efficiency, chip separation

Where to use

Industrial machine tools Places with low volumes of water-soluble and non-water-soluble mists, such as MCTs, CNC lathes, grinders, drilling machines, dischargers, etc.

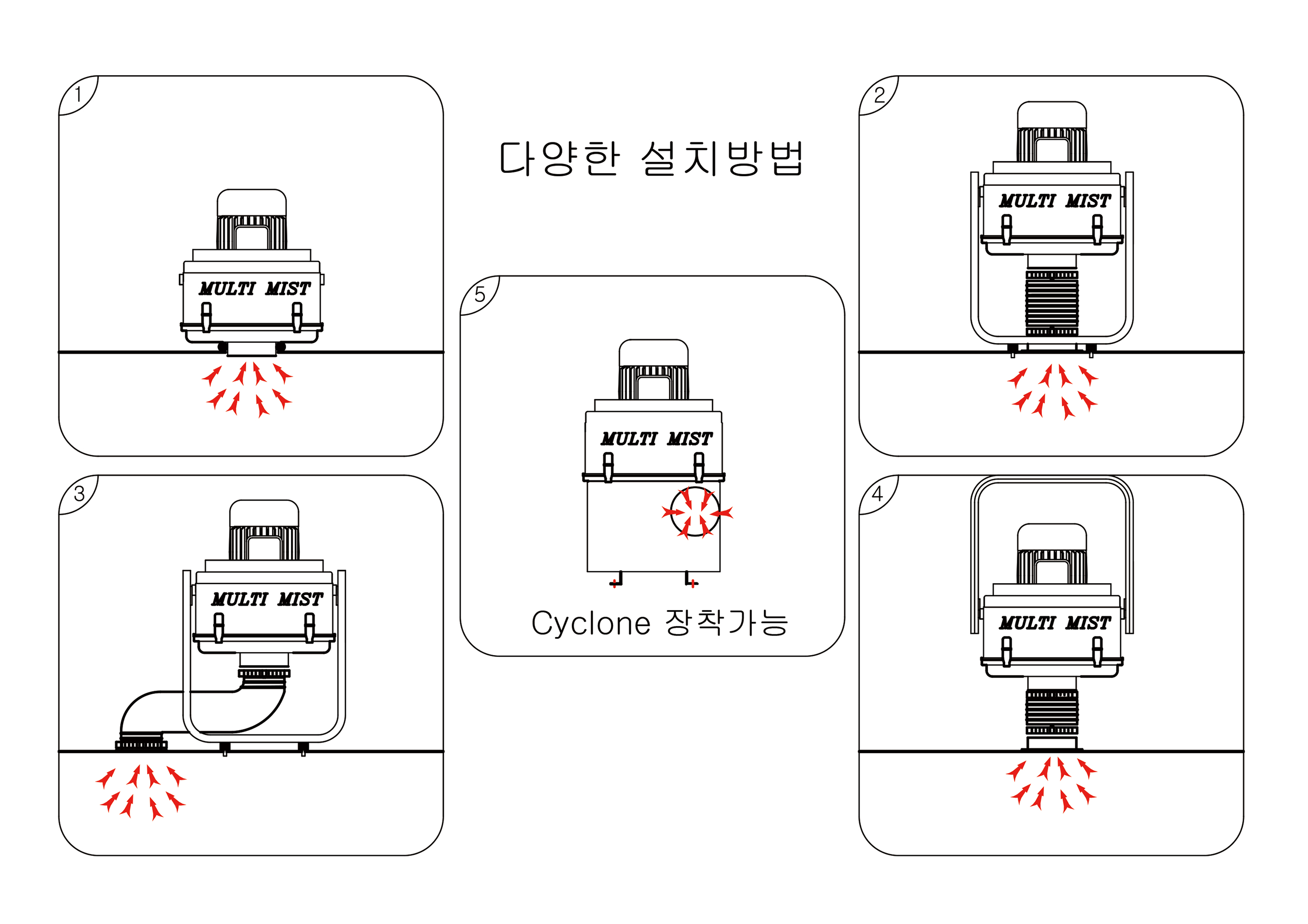

Installation examples

Product selection

Specs

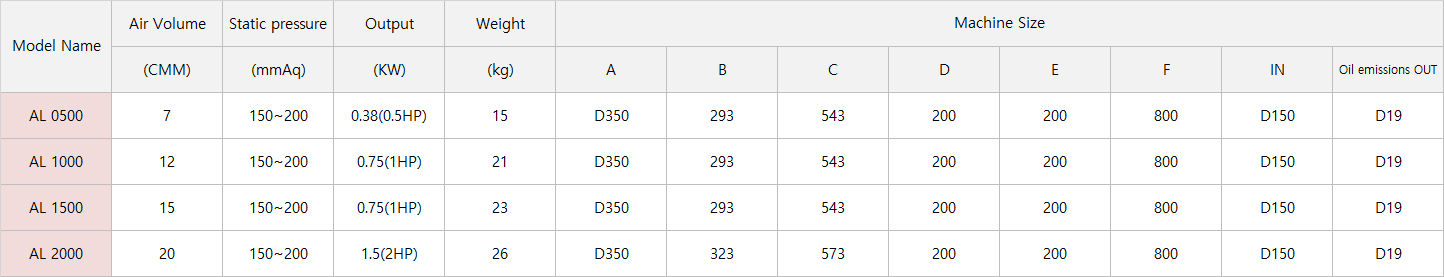

Product specifications

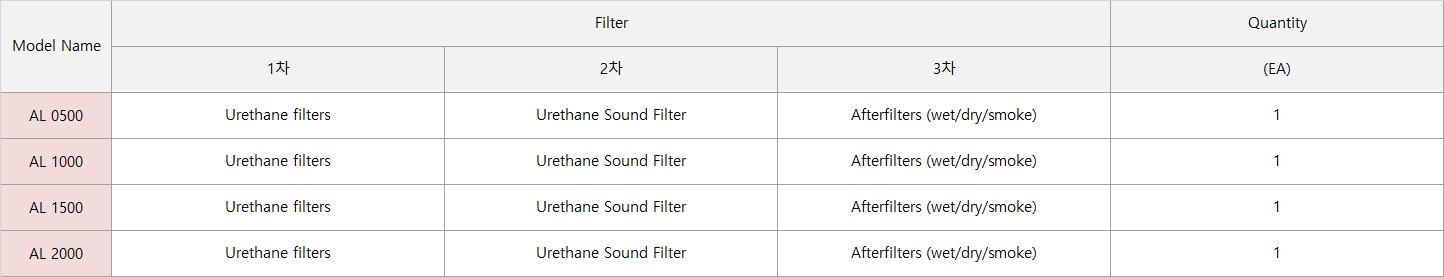

Filter specifications

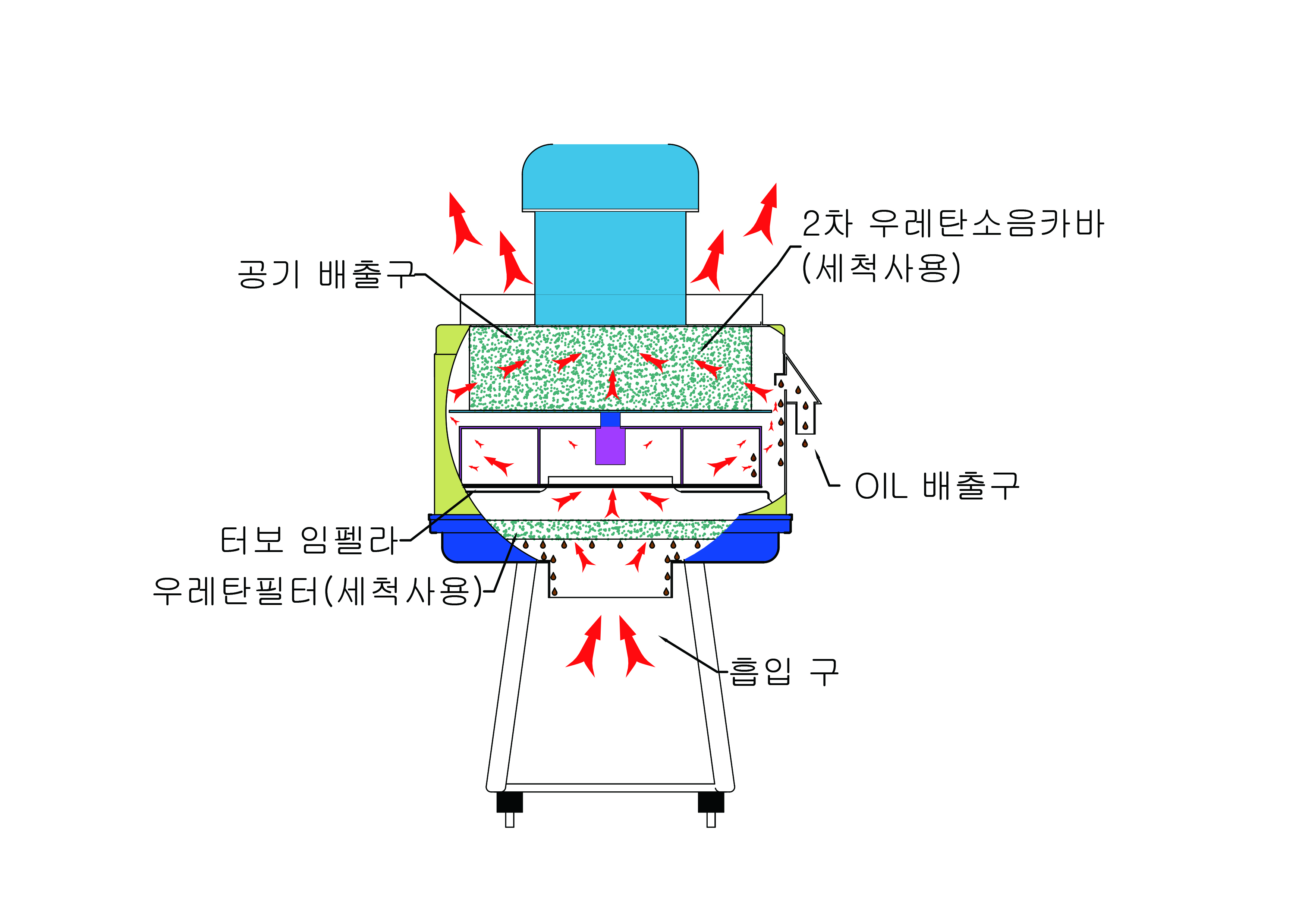

Features

Filter Features

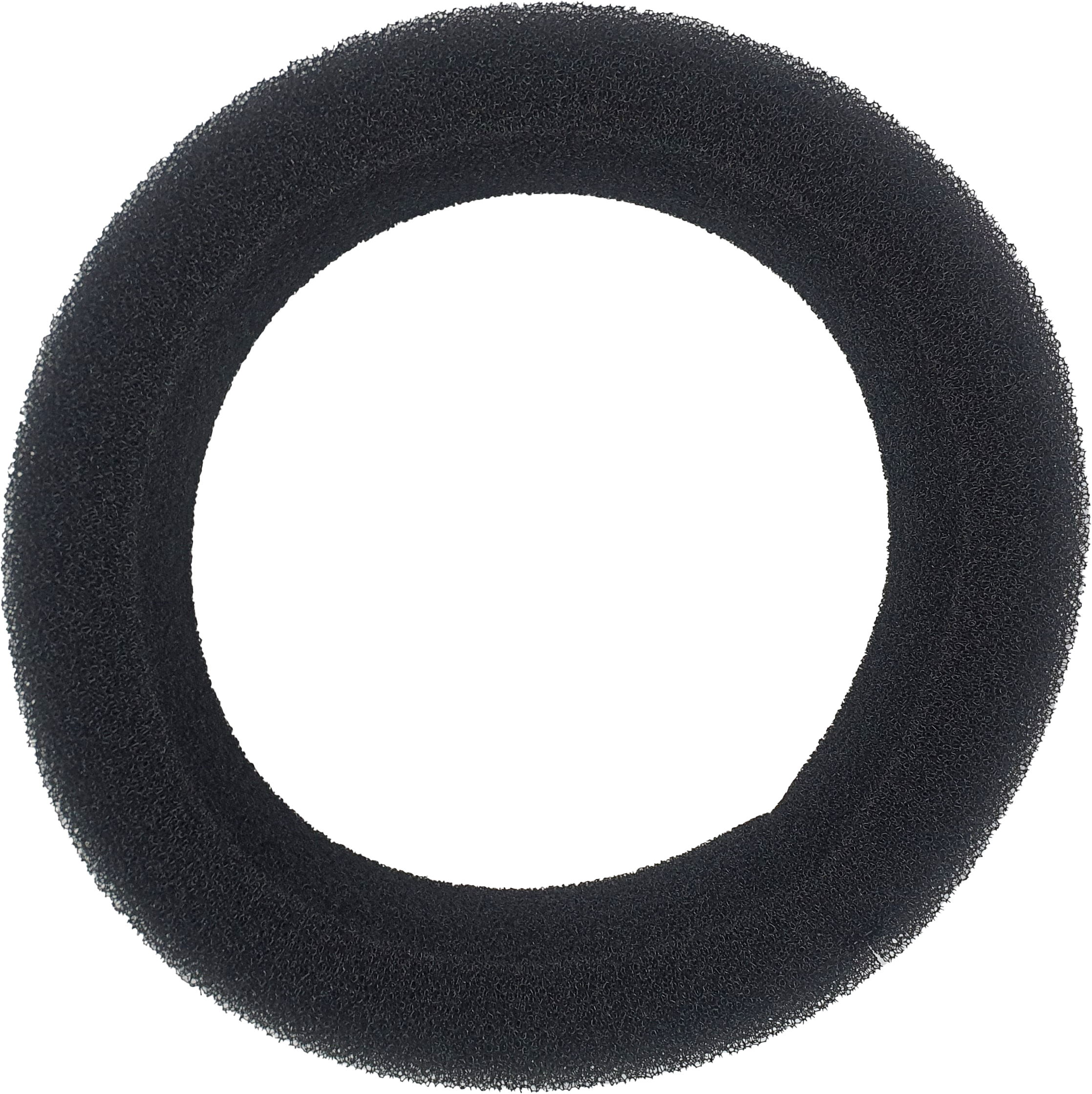

- Primary urethane filter (D323xT20)
- Condenses the mist contained in the fluid and discharges it to the bottom, and the filter can be cleaned or replaced
- Unlike ceramic filters in the Multi Series, no rubber gasket is used
- Chips or other foreign matter can be prevented from entering the impeller and kept in optimal balance
- Available for cleaning or replacement

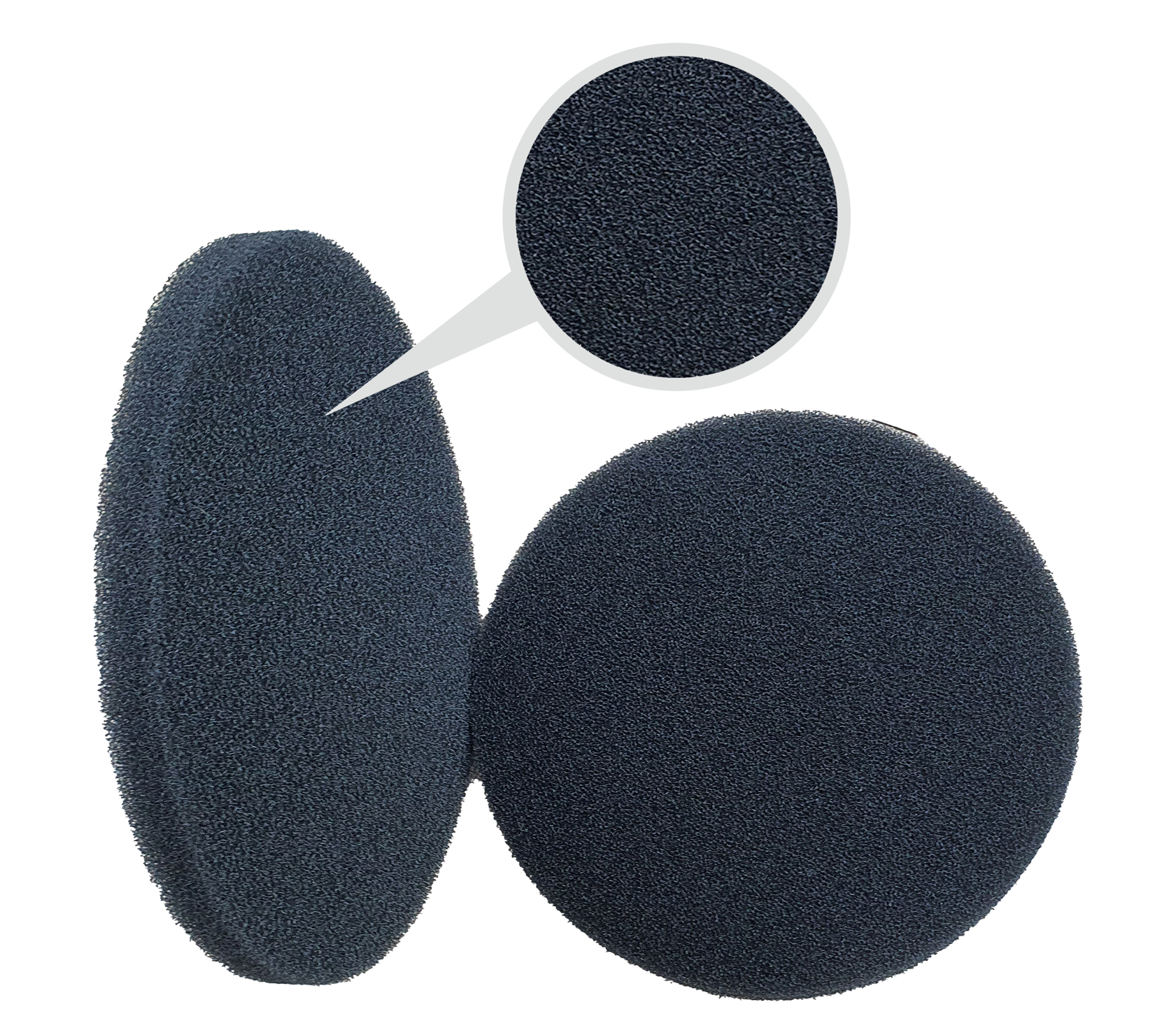

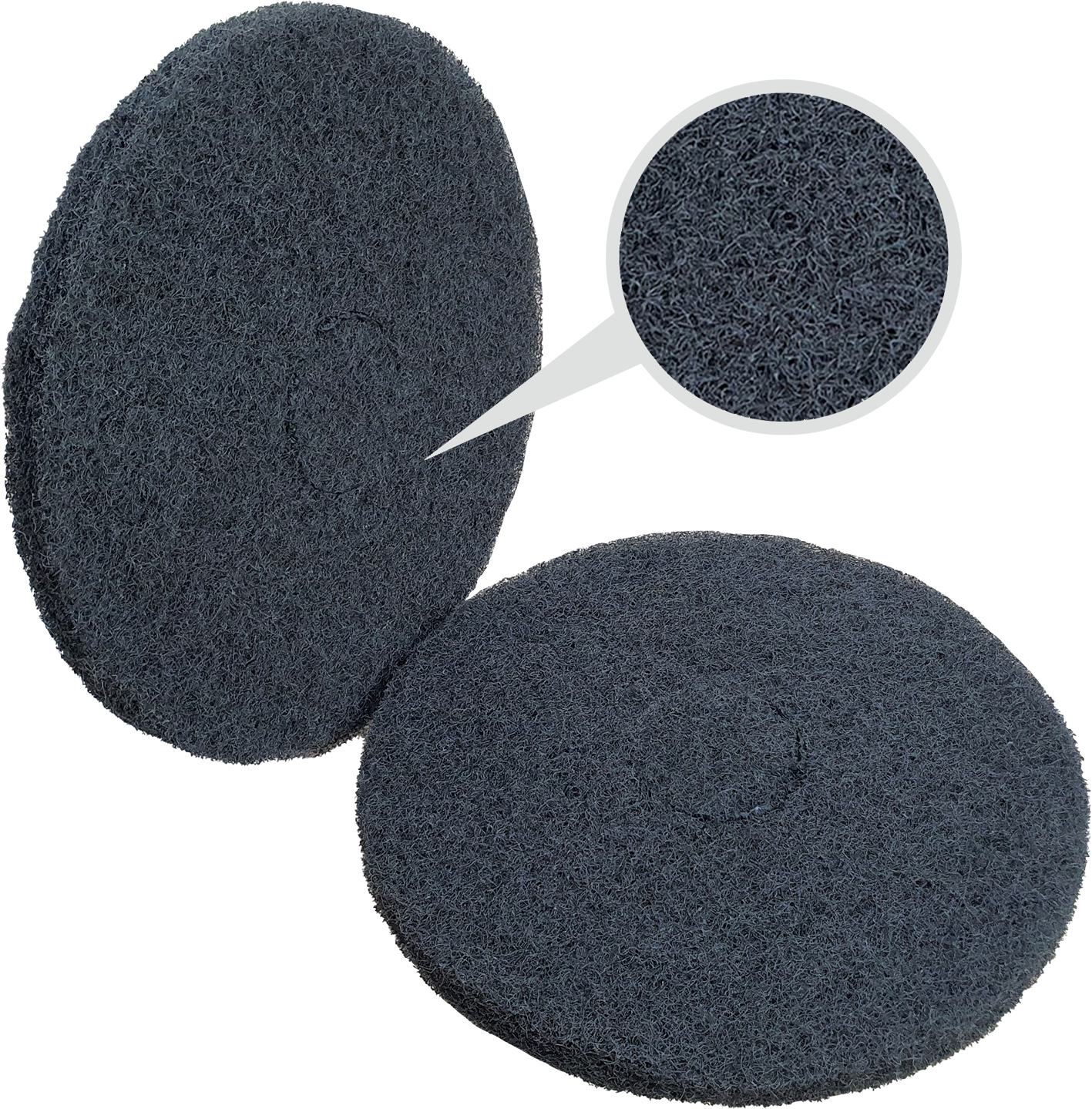

- Secondary urethane sound filter (945x90x40T)
- AL Dampens body vibrations to reduce noise
- Can be cleaned or replaced for use
- Thirdary afterfilter (D350xL250)
- Blocks micron-sized dust
- Capture different filter contents for different purposes
- Wet (for oil) 20㎛ / Dry (for dust) 30㎛ / HEPA (for smoke) 3-5㎛

Product Features

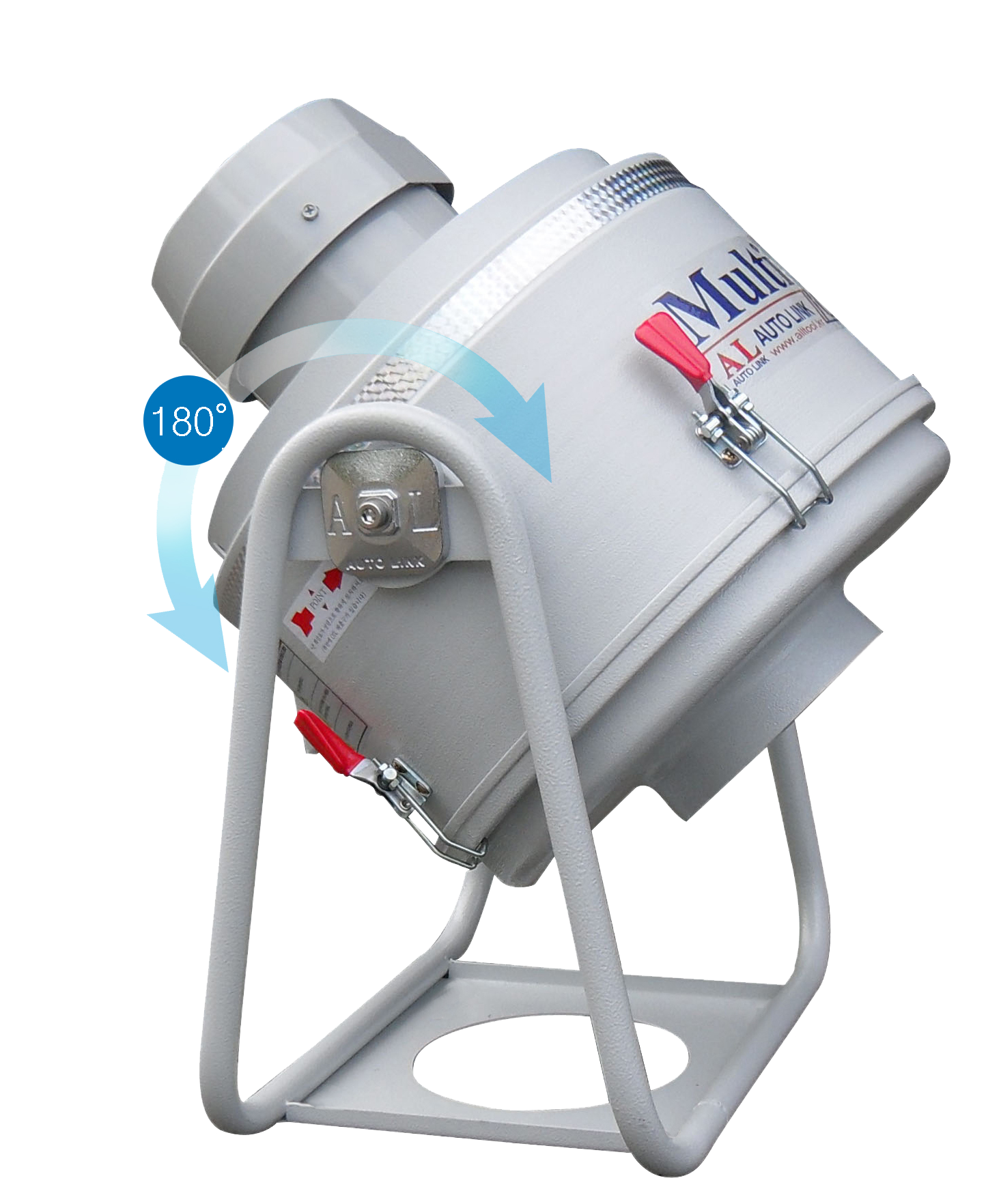

- Free-angle dust collector with adjustable body angle for easy installation and maintenance
- Vertical design allows coolant to return to the bottom, minimizing oil discharge through the oil outlet, resulting in higher capture efficiency and longer filter l
- Adjustable-angle dust collector for easy installation and maintenance. Vertical structure returns coolant to the bottom, reducing oil discharge and enhancing capture efficiency and filter life.

Options

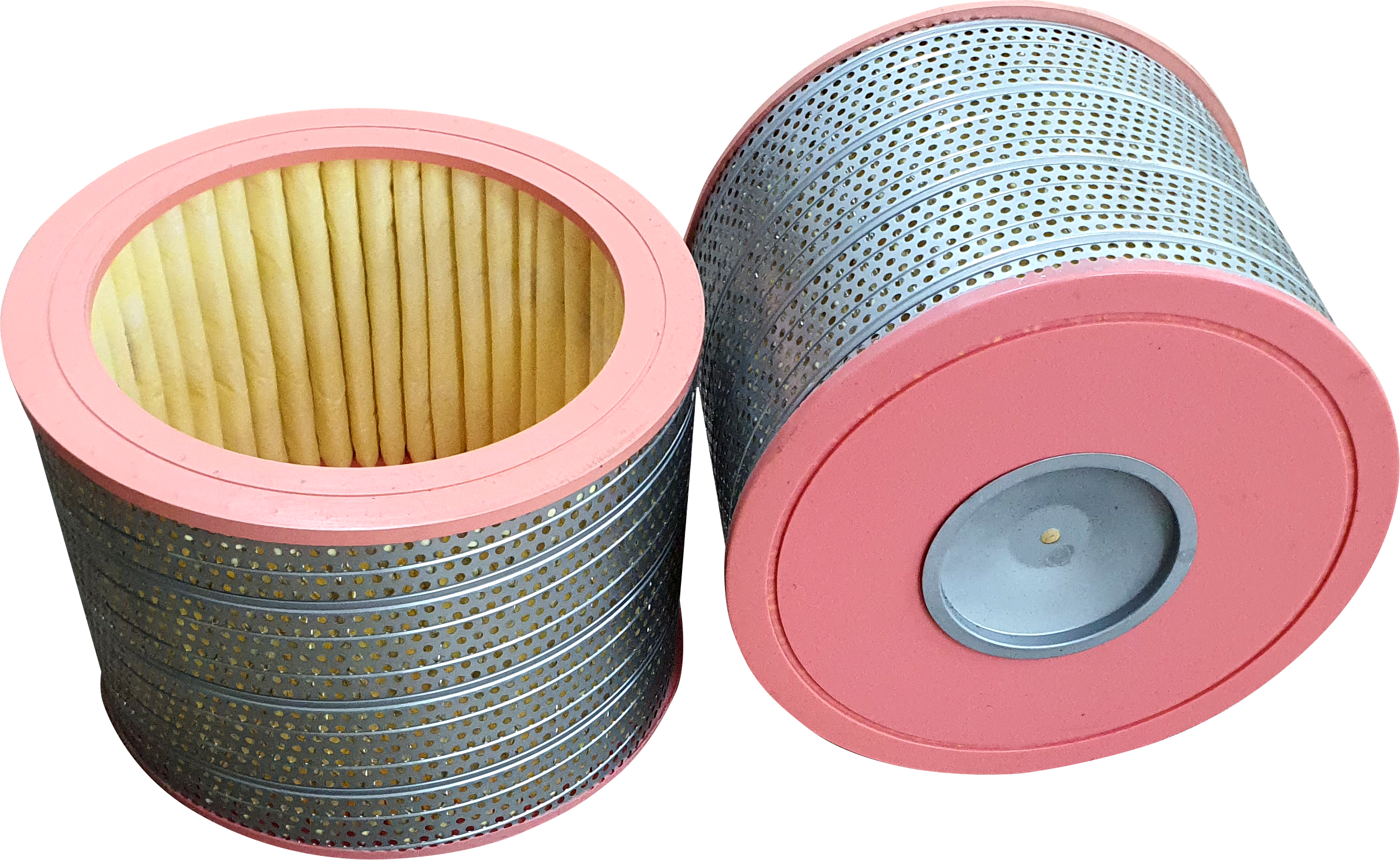

- Primary urethane filter can be changed to ceramic filter/ / Secondary after-filter can be changed according to the application: Wet (for oil) 20㎛ - basic / Dry (for dust) 30㎛ / HEPA (for smoke) 3-5㎛/ / Can be changed from existing inlet to customized inlet (vertical/horizontal double-headed inlet, side inlet)
- Can be equipped with a micro-cyclone body/ / Dust collector holder can be applied: holder can be applied up to 1400~2200 length / Separate mobile holder can be applied
